High Precision Four-Lane Capsule Checkweighing System Pharma Checkweigher
This high precision four-lane capsule checkweighing system is specifically designed for capsule production lines, enabling simultaneous weighing on four independent channels, significantly improving inspection efficiency. Its optimized conveyor structure ensures smooth capsule transport with minimal vibration, maintaining weighing stability even at high production volumes. This automatic pharma capsule checkweigher is an ideal in-line integration device, enabling real-time weight verification without interrupting the production process. High-sensitivity weighing sensors and intelligent algorithms ensure accurate detection of underweight and overweight capsules, thus guaranteeing product integrity and regulatory compliance. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us for a quote.

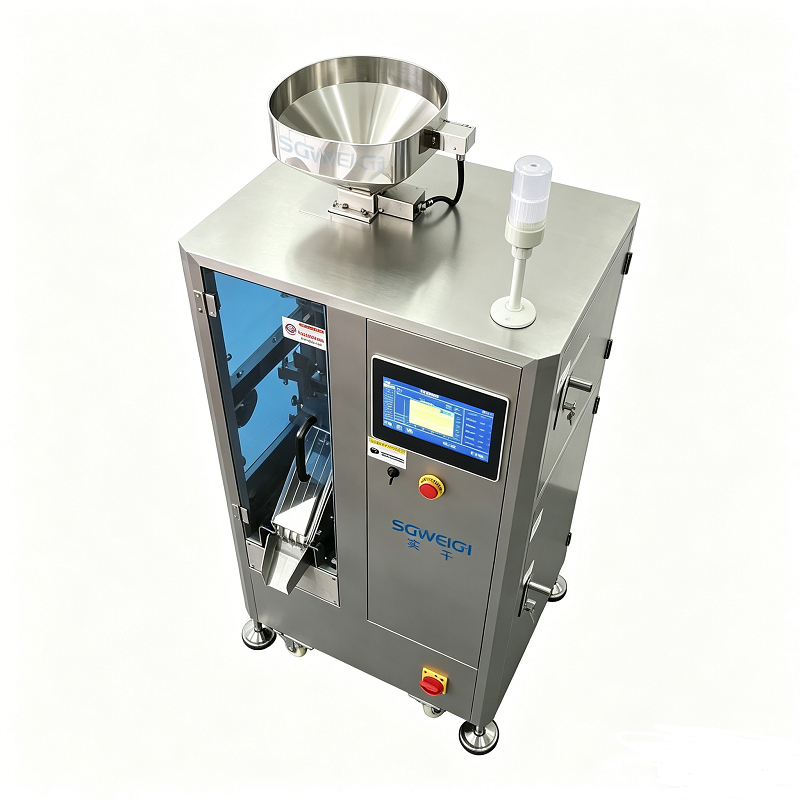

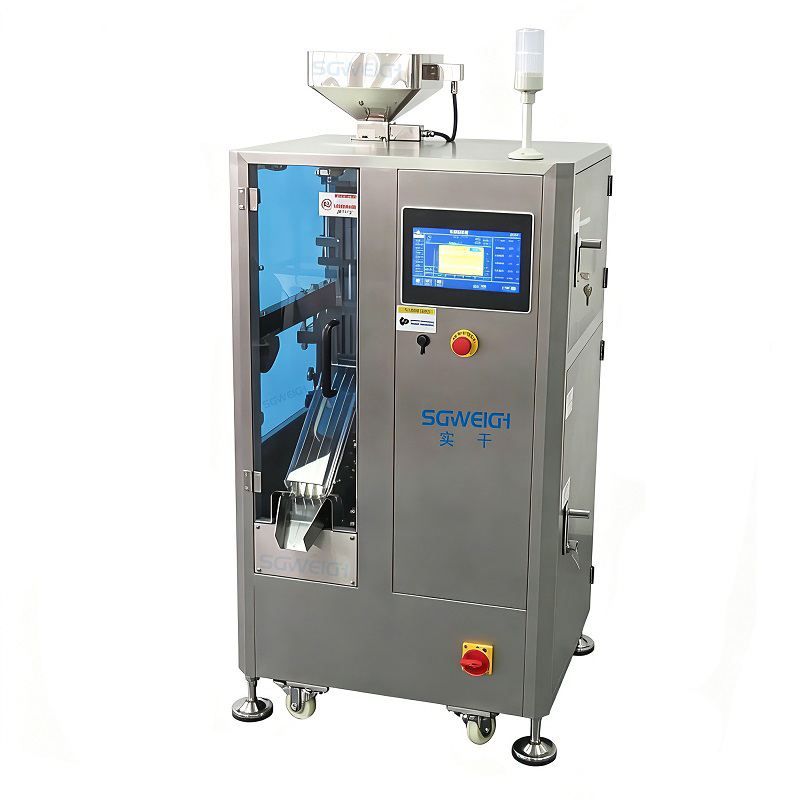

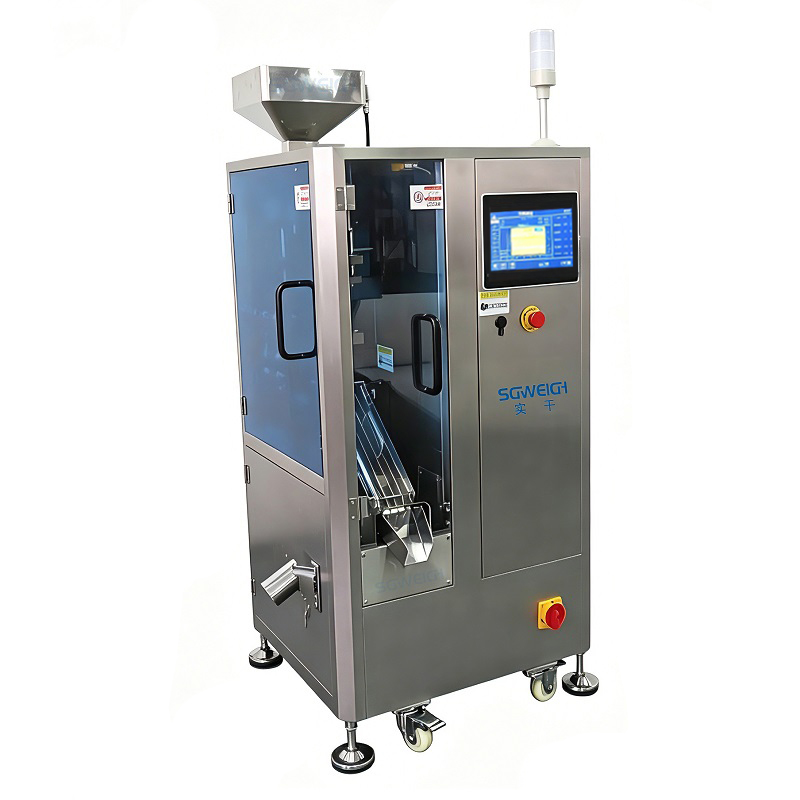

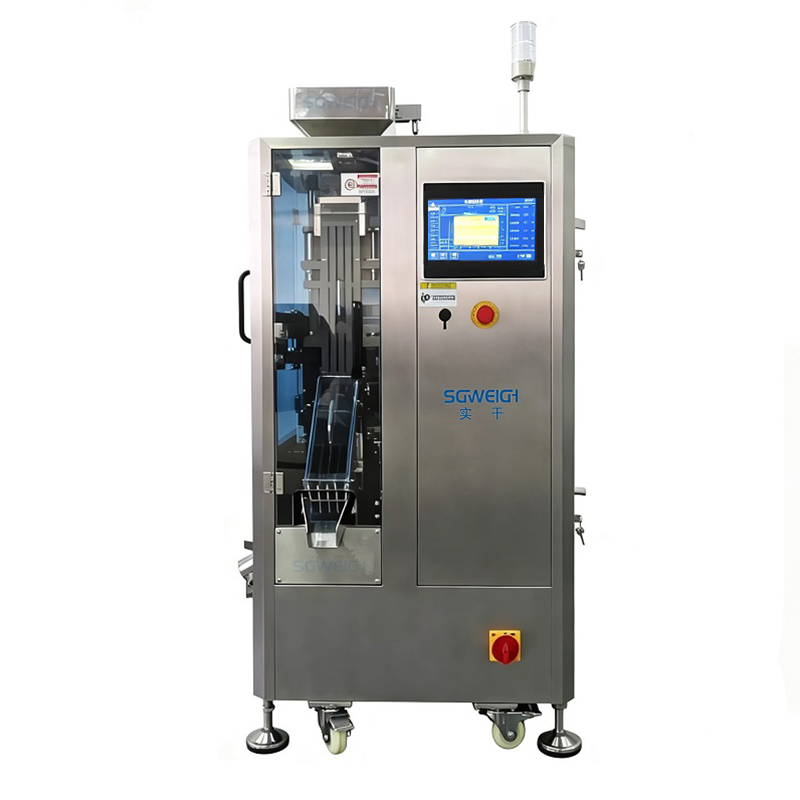

High precision four-lane capsule checkweighing system photos
Type SG-JN4
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 1.5W pcs/HR
Number of columns: 10
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:350kg
Shell Material:SUS304 Stainless Steel
1. High-speed weighing sensors for real-time, precise control
2. Automatic calibration algorithms reduce deviations and waste
3. User-friendly touchscreen interface simplifies operation and setup
4. Data logging and connectivity for compliance tracking and batch reporting
5. Compact, modular design for seamless integration into existing systems
6. Consistent weight accuracy across every production cycle
7. Enhanced quality assurance through real-time data visibility
8. Reduced material waste and minimized rework
9. Easily meets international pharmaceutical standards
10. Increased uptime through durable, low-maintenance design
The high precision four-lane capsule checkweighing system shown may not meet your requirements. We can customize it to perfectly solve your production line checkweighing problems based on your specific needs.
High Precision Four-Lane Capsule Checkweighing System Pharma Checkweigher
The high precision four-lane capsule checkweighing system has adjustable settings and multiple customizable detection channels, enabling online detection of different capsule sizes (from #00 to #5) as well as the weight of regular tablets.
High Precision Four-Lane Capsule Checkweighing System Pharma Checkweigher
1. Packaging Materials: Usually uses international standard export packaging boxes with good wear resistance, shockproof and waterproof performance. Box materials can be hard wooden boxes, plastic boxes or export-specific cardboard boxes.
2. Protective Measures: To ensure the machine is not damaged during transportation, sufficient filling materials such as foam and shockproof cotton need to be added inside the packaging box.
Pre-sales Service
1. Test with customer engineers to learn how to use the machine.
2. Show product samples and our machine.
3. Test machine video will be sent to the customer, and then the balance will be paid to us.
After-sales Service
1. Manual.
2. Adjustment and setup video.
3. Telecommunications. Or face-to-face online communication is possible.
4. This machine has a one-year warranty and lifetime maintenance. 7/24 online technical support.
