High-Sensitivity Metal Detector for Food & Pharma Product Inspection Solution
The high-sensitivity metal detector for food pharma is specifically designed for modern production environments and can be integrated into food processing lines, pharmaceutical production lines, packaging equipment, conveyor systems, and other automated inspection processes. With their high-sensitivity detection capabilities, the digital inline conveyor metal detector can precisely identify minute metal contaminants—such as ferrous, non-ferrous, and stainless steel particles—while ensuring the smooth operation of production workflows. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

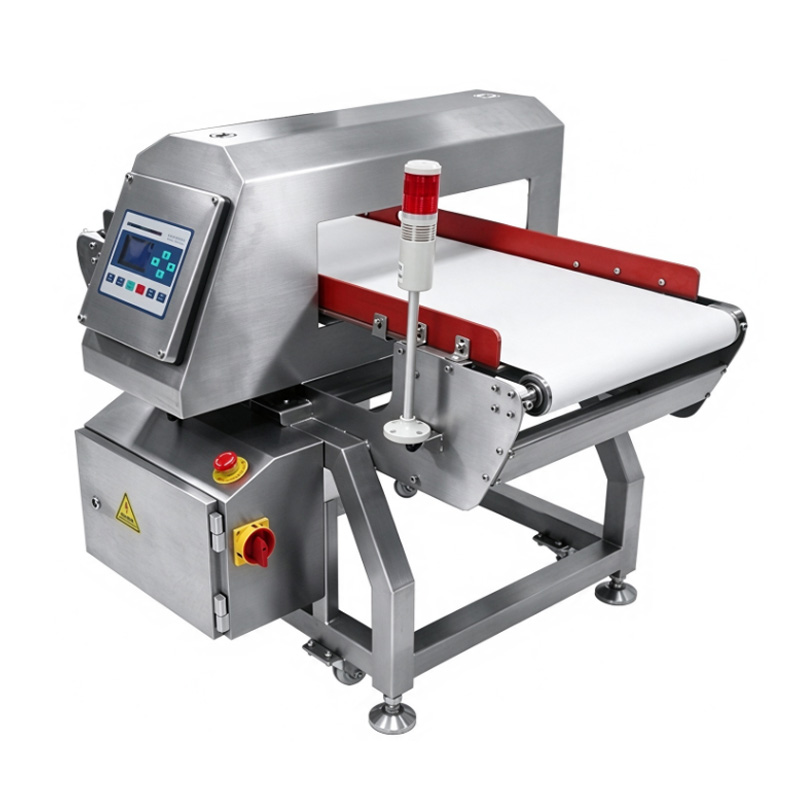

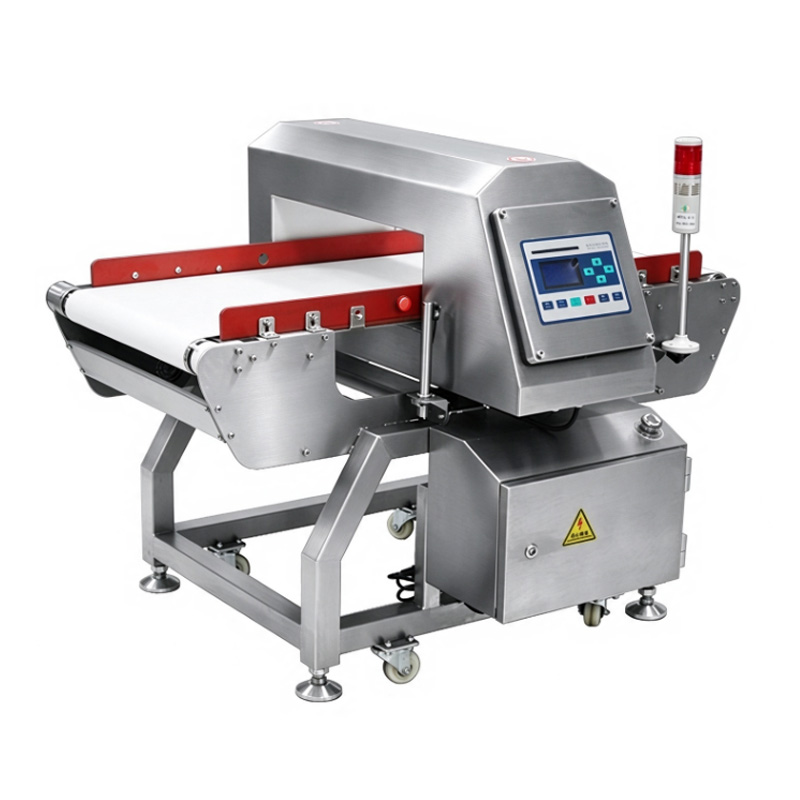

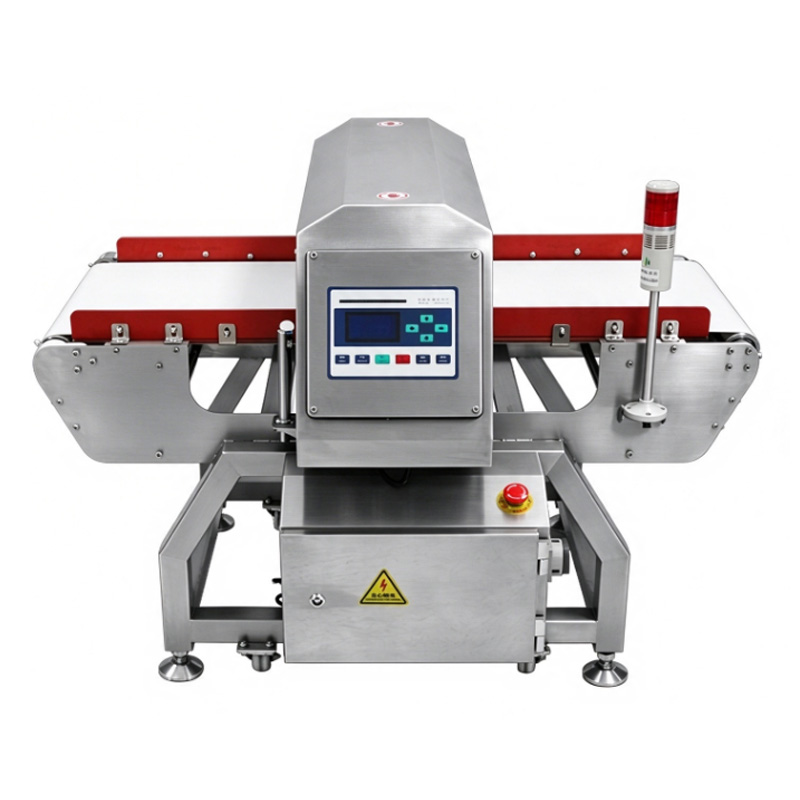

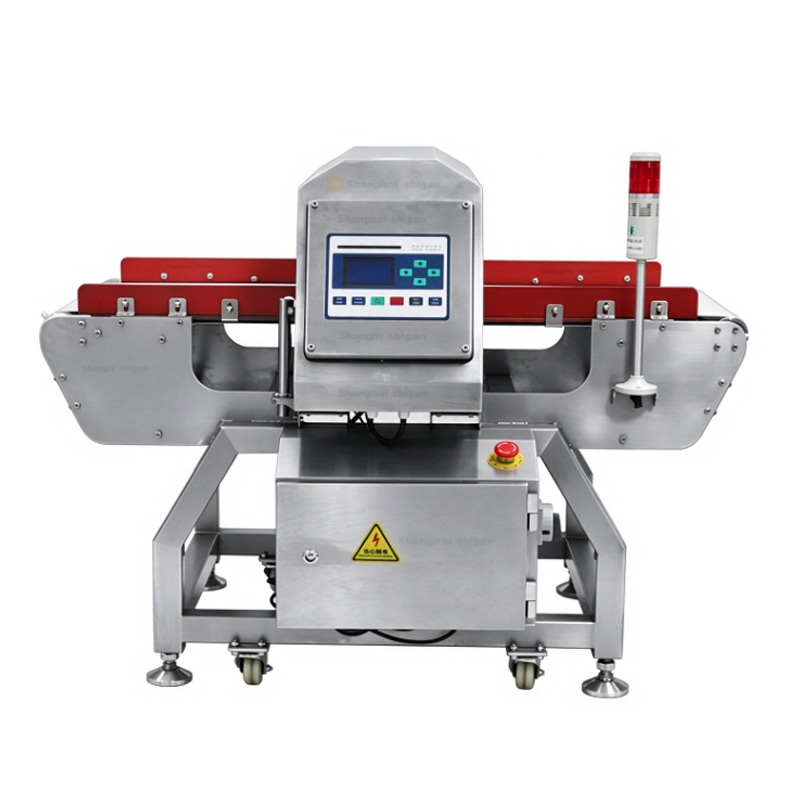

High-sensitivity metal detector for food pharma photos
Model: SG-M800
Detection Method: Balanced Coil Induction
Detection Sensitivity: Ferrous (φ mm): 0.6–0.8; Stainless Steel (φ mm): 1.5–2; Non-ferrous (φ mm): 1.2–2.3
Sensitivity Adjustment: Microcomputer-controlled
Detection Width: 600 mm (customizable)
Detection Height: 120 mm (customizable)
Alarm Method: Audible and visual alarm upon detection of metallic foreign objects; conveyor belt stops automatically (optional automatic rejection system available)
Power Supply: AC 220V, 50–60 Hz
Power Consumption: Approx. 140 W
Dimensions: L1650 × H1050 × W900 (mm)
Machine Weight: 90 kg
1) Constructed from 304 stainless steel, ensuring long-term durability and an aesthetically pleasing appearance.
2) Digital system with a memory function capable of storing settings for various products (supporting over 12 distinct product profiles).
3) Features a dual-signal detection circuit, an LCD screen, and a bilingual (Chinese/English) menu for user-friendly operation.
4) Utilizes advanced German detection technology based on the principle of balance, offering superior reliability and performance. Employs dual-channel, multi-frequency detection to identify ferrous metals, non-ferrous metals, and stainless steel.
5) Integrates DSP (Digital Signal Processing) and MCU (Microcontroller Unit) for data sampling and processing of detection signals, enhancing overall detection accuracy.
6) Features an innovative circuit design with high sensitivity and mature phase-adjustment technology; capable of automatic product calibration to effectively suppress “product effect” (interference caused by the product itself).
7) Capable of detecting a wide range of materials, including iron, stainless steel, copper, aluminum, and other non-ferrous metals.
8) Equipped with an automatic learning/recognition function to mitigate the influence of product material properties; offers strong resistance to external interference and vibrations.
9) Designed for continuous, 24-hour operation.
10) Excellent water resistance, making it suitable for demanding environments—including those characterized by high or low temperatures, humidity, dryness, dust, or condensation.
High-Sensitivity Metal Detector for Food & Pharma Product Inspection Solution
Depending on specific application requirements, the high-sensitivity metal detector for food pharm can be flexibly configured to accommodate unique product characteristics, conveyor specifications, inspection speeds, and rejection mechanisms.
In the food industry, metal detection technology is used to inspect items such as meat, snacks, baked goods, frozen foods, confectionery, cereals, powdered products, and various packaged finished goods. In the pharmaceutical sector, specialized high-sensitivity metal detectors are employed to screen tablets, capsules, powders, granules, and finished pharmaceutical packaging to ensure they are free from metal contaminants.
High-Sensitivity Metal Detector for Food & Pharma Product Inspection Solution
1. Before shipment, all our machines undergo comprehensive testing and debugging to ensure stable and reliable performance.
2. The equipment is packed in reinforced wooden crates, featuring internal shock-proof and moisture-proof protection to effectively prevent damage during transit.
3. We partner with several professional international logistics companies, offering a variety of shipping methods, including sea, air, and land transport.
4. We ensure that the equipment is delivered safely and on time to your facility.
1. Seven-day replacement policy, one-year warranty, and lifetime maintenance. Every product undergoes rigorous inspection before shipment to ensure that the item you receive is free from quality defects.
2. All products supplied to customers are manufacture by the original factory and come with genuine, factory-original parts and components.
3. During the warranty period, our company will repair any components damaged due to quality-related issues. For damage occurring after the warranty period, replacement parts will be provided at cost price. In the event that equipment is damage due to human error or improper handling, any repairs or replacement parts provide by our company will be charge at cost.
