High-Precision Dual-Lane Checkweigher for Fast Production Industrial Checkweigher
This high-precision dual-lane checkweigher can inspect products across two lanes simultaneously, significantly boosting production capacity while making efficient use of valuable floor space in the production facility. Each product is weighed independently as it moves along its respective lane. If a package’s weight falls outside the preset range, an automatic rejection system promptly removes it from the production line. Designed for demanding automated production environments, this industrial dual-lane checkweigher combines speed and precision with flexible integration capabilities. Should you have interests in us, please don’t hesitate to get in touch with us.

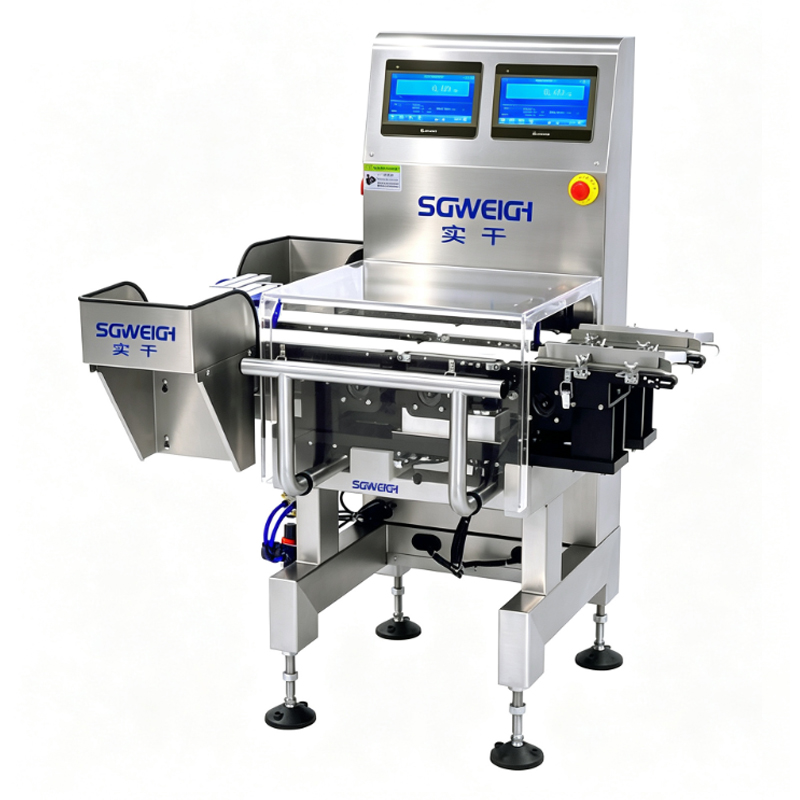

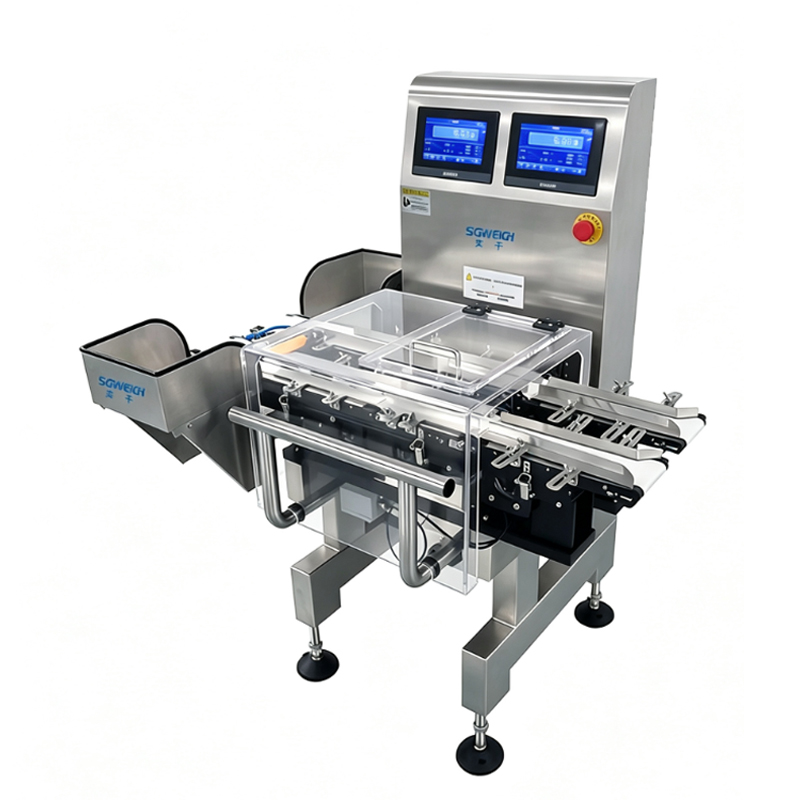

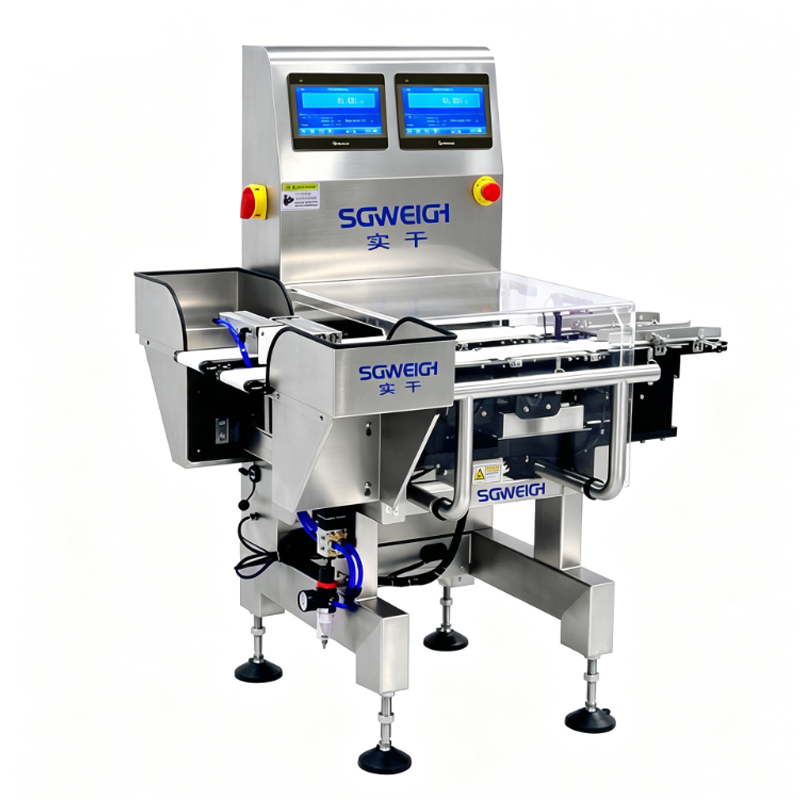

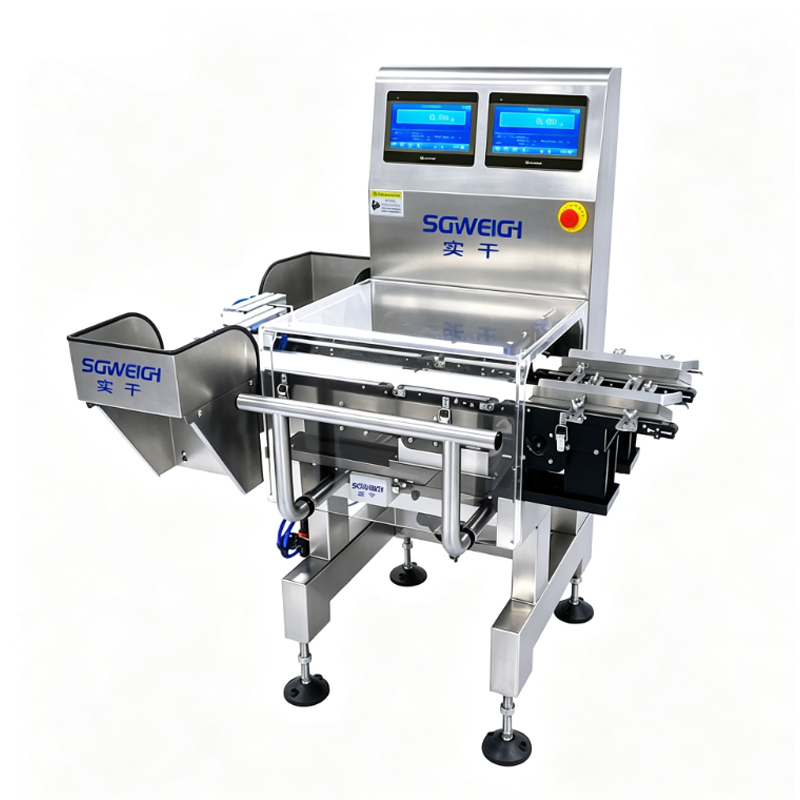

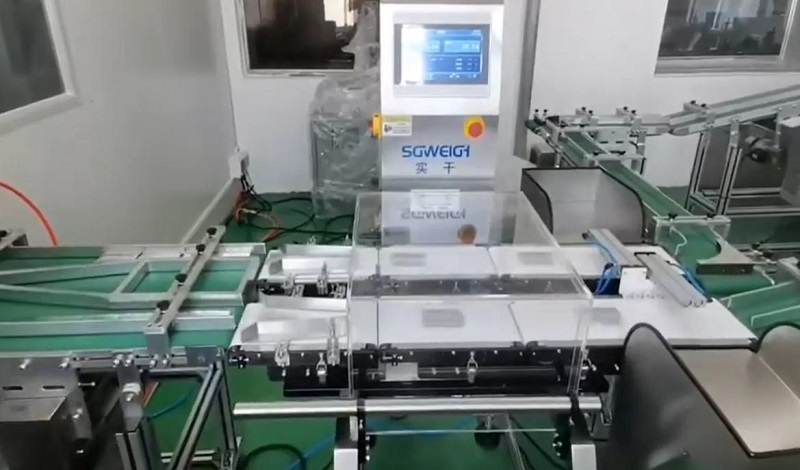

High-precision dual-lane checkweigher photos
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
1. Independent dual-channel weighing modules for precise detection
2. Automatic rejection system for non-compliant packaging
3. High-sensitivity load cell technology for accurate measurement
4. Touchscreen HMI for intuitive, convenient operation and easy parameter adjustment
5. Real-time production data monitoring and reporting
6. Durable, hygienic, and easy to integrate
High-Precision Dual-Lane Checkweigher for Fast Production Industrial Checkweigher
Our expert engineers will design a high-precision dual-lane checkweigher solution tailored to your production line, capable of meeting the diverse demands of even the most complex manufacturing environments. Furthermore, we continuously optimize and refine our solutions based on real-world performance and client feedback, ensuring that your checkweigher consistently operates at peak efficiency.
High-precision dual-lane checkweigher is widely used in high-volume industries such as food, pharmaceuticals, cosmetics, and consumer goods, and is capable of handling products in a variety of packaging formats—including bags, sachets, boxes, bottles, cartons, and various other types of individually packaged items.
High-Precision Dual-Lane Checkweigher for Fast Production Industrial Checkweigher
Packaging:
1: Lubricate the drive mechanisms.
2: Dismantle the machine into modules.
3: Wrap the modules in plastic film.
4: Pack the modules into cartons.
5: Affix shipping marks.
If you have any specific requirements, we will pack the items according to your instructions.
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. Factory visits.
After-Sales Service
1. Training on machine installation and operation.
2. One-year warranty and lifetime repair services.
