Combined Checkweigher and Metal Detector for Bottles Dual Inspection System
This combined checkweigher and metal detector for bottles integrates automatic checkweighing and metal detection capabilities, combining two critical quality control functions into a single, efficient solution that simultaneously verifies product weight and detects metal contaminants. Featuring a user-friendly control interface, adjustable inspection parameters, automatic data monitoring, and a reliable rejection mechanism, the automatic combined checkweigher and metal detector is engineered for demanding production environments that require high precision, efficiency, and product safety. If you are interested in our products and services, please keep free to contact us for a quote.

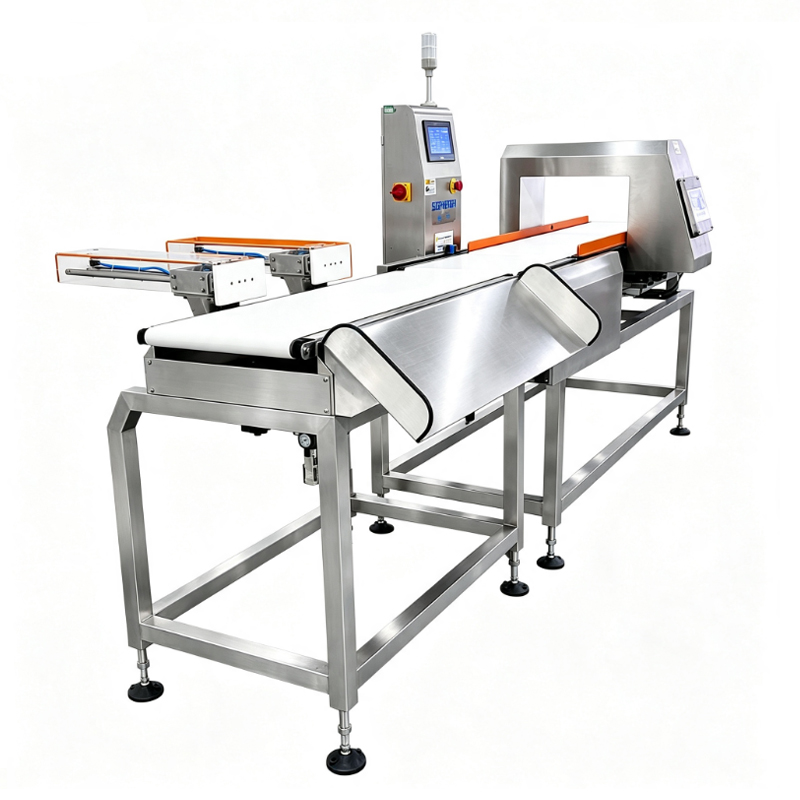

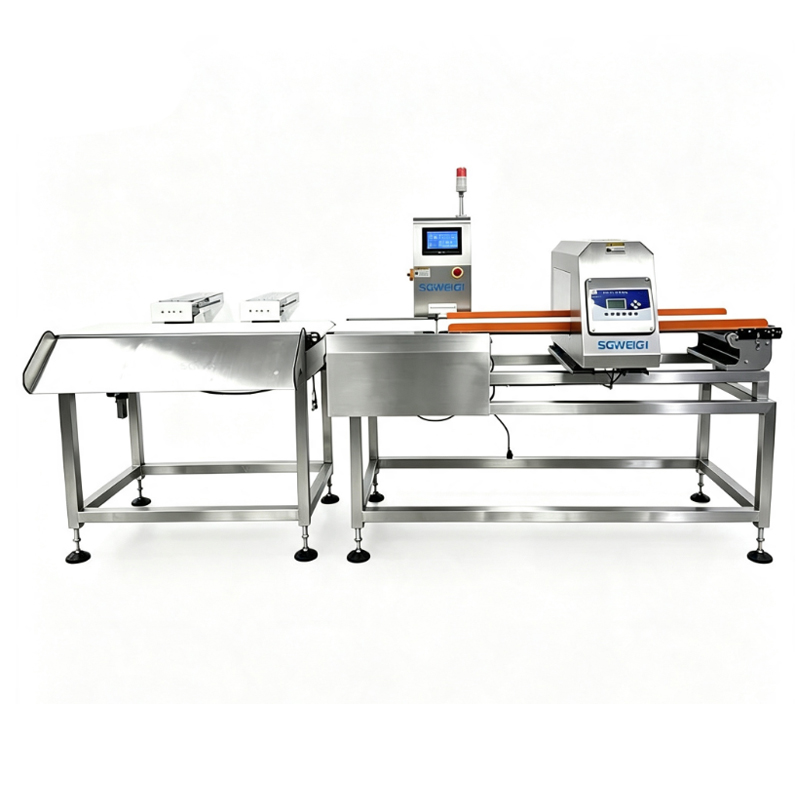

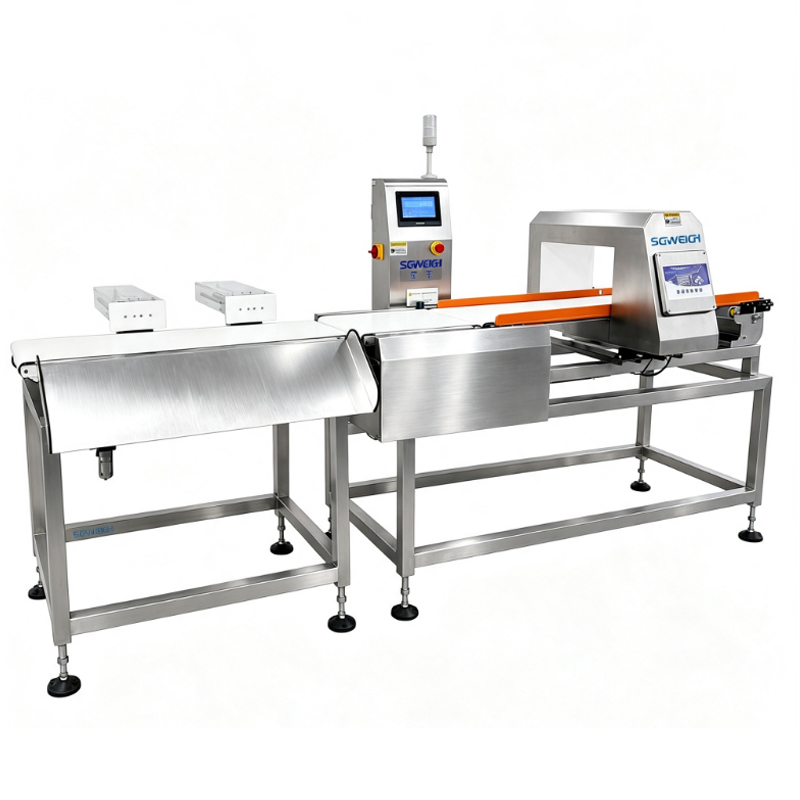

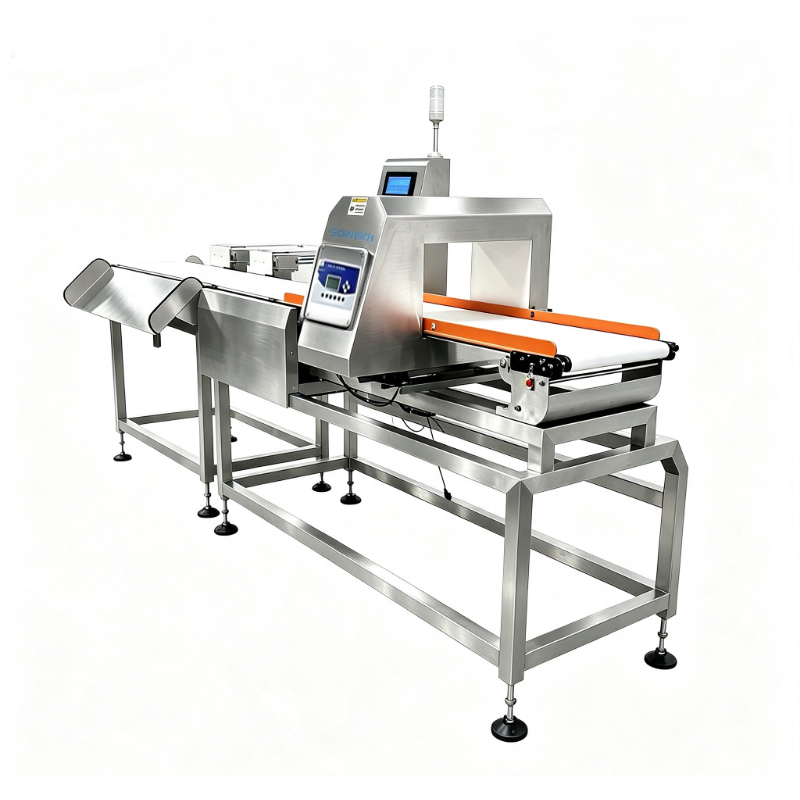

Combined checkweigher and metal detector for bottles photos
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
If the displayed combined checkweigher and metal detector for bottles does not fully meet your requirements, we can provide customized checkweighing and metal detecting equipment—tailored to your specific production and application environment, ensuring seamless integration with your existing production lines.
1. Precise automatic checkweighing ensures consistent product weight
2. Advanced metal detection technology enables comprehensive contamination control
3. Real-time monitoring and reliable rejection of non-conforming products
4. Performance optimized for high-speed production lines
5. This combination ensures every product meets safety and quality standards
6. Durable, hygienic, and highly productive
7. Compact, integrated design saves valuable floor space
8. Easy operation with intuitive controls
9. Reliable, stable performance minimizes downtime
10. Rugged durability to withstand demanding production environments
Combined Checkweigher and Metal Detector for Bottles Dual Inspection System
This combined checkweigher and metal detector for bottles is suitable for a wide range of bottled products, including beverages, sauces, condiments, liquid pharmaceuticals, nutritional supplements, cosmetics, and other consumer goods. Users can flexibly configure inspection parameters and rejection settings based on production requirements to accommodate varying bottle sizes, weights, and product characteristics.
Combined Checkweigher and Metal Detector for Bottles Dual Inspection System
The entire machine is double-layered.
Pre-packaging uses plastic bags for transporting the entire machine, with key components protected by foam plastic.
Engineering packaging uses sturdy polyethylene wooden crates that meet the import standards of various countries.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product’s features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
