Tunnel-Type Metal Detector with Conveyor Belt for Industrial Use Manufacturer
This synchronous conveying system of tunnel-type metal detector with conveyor belt ensures smooth product flow, detecting ferrous, non-ferrous, and stainless steel particles in real time for uninterrupted monitoring. An advanced digital control system allows for precise parameter adjustments, enabling this industrial conveyor belt metal detector to adapt to various product sizes, packaging types, and environmental conditions. An intuitive interface simplifies operation, while an automatic rejection system immediately removes contaminated items, minimizing downtime and maximizing production efficiency. If you are interested in our products and services,please keep free to contact us for a quote.

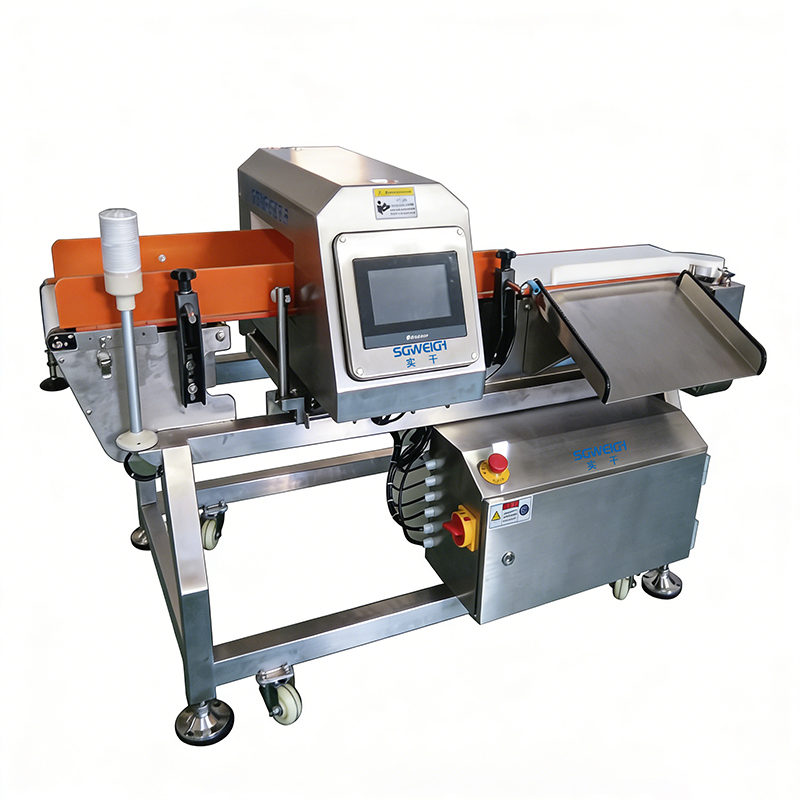

Industrial conveyor belt metal detector photos
Model: New Special Model
1. Frame Dimensions (approx.): Length: 1700mm, Width: 900mm, Height: 1100mm
2. Effective Detection Diameter: 500mm*300mm
3. Conveyor Belt Height: 750mm±50mm
4. Conveying Speed: Approx. 30 meters/minute
5. Detection Indicators: Iron (Fe) ≥ φ2.0mm, Non-ferrous (Non-Fe) ≥ φ3.0mm, Stainless Steel (Sus) ≥ φ3.5mm
6. Body Material: All 304 Stainless Steel Body
7. Conveyor Belt: White Food-Grade Conveyor Belt
8. Protection Rating: IP65
9. Ambient Temperature: (-10~50) degrees Celsius
10. Power Supply/Voltage: Single-phase 220V/50HZ
11. Product Load Capacity: 25KG
12. Alarm: Audible and Visual Alarm
1) Used for detecting magnetic and non-magnetic metals.
2) Suitable for bulk and packaged materials.
3) Conveyor belt systems.
4) Rejection method: When a metallic foreign object is detected, the conveyor belt stops and emits a buzzer or automatically rejects the object.
5) Wide range of widths, lengths, and heights available for flexible selection.
6) Simple design, easy to clean.
7) Multiple solutions available to suit your operations, standards, and food safety levels.
Tunnel-Type Metal Detector with Conveyor Belt for Industrial Use Manufacturer
The industrial conveyor belt metal detector shown is a customized model and may not meet your requirements. The parameters above are for reference only. SGWEIGH has over 17 years of experience in manufacturing metal detectors and can provide multiple digital metal detector solutions free of charge according to your actual needs!
1. Specifically designed for the detection of ferromagnetic substances in food and pharmaceuticals.
2. Industrial conveyor belt metal detector is used for product testing in the chemical raw materials, rubber, paper, and clothing industries.
Tunnel-Type Metal Detector with Conveyor Belt for Industrial Use Manufacturer
Packaging:
1. Lubricate the drive unit
2. Divide the machine into modules
3. Wrap the modules with plastic film
4. Pack the modules into cartons
5. Make shipping marks
If you have any special requirements, we will pack according to your specifications.
Pre-sales Service
1. Test with customer engineers to learn how to use the machine.
2. Show product samples and our machine.
3. Test machine video will be sent to the customer; then, the balance will be paid to us.
After-sales Service
1. Manual.
2. Adjustment and setup video.
3. Telecommunications. Or face-to-face online communication is possible.
4. This machine has a one-year warranty and lifetime maintenance. 7/24 online technical support.
Related Products
Bottle Rotary Checkweigher for Pharmaceutical

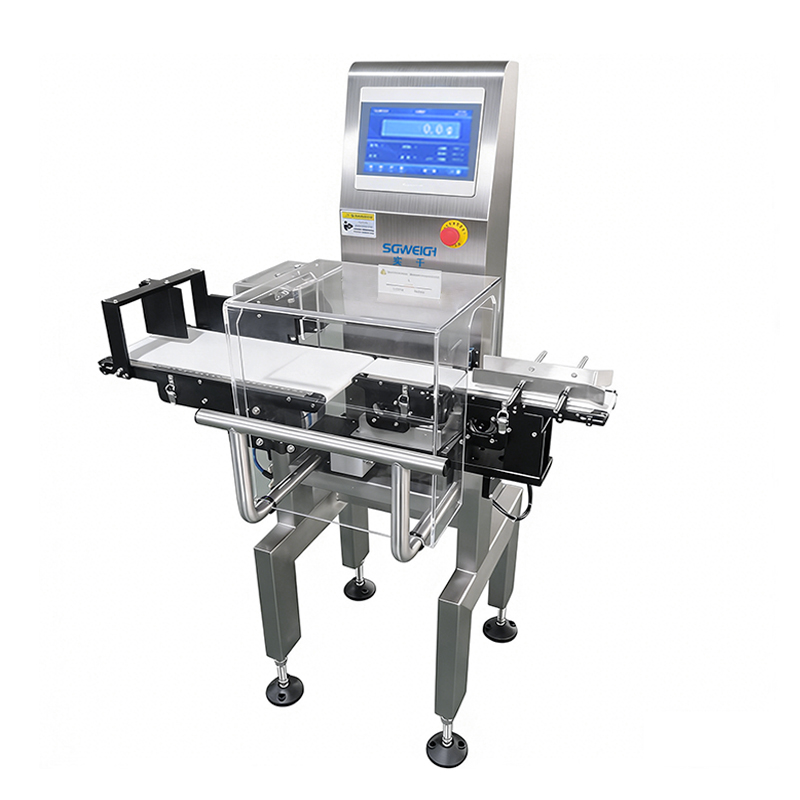

Industrial Checkweighers with Flow Divider Rejection
Mini Capsule Tablet Sampling Checkweigher for Laboratory
Bottle Checkweigher and Metal Detector System

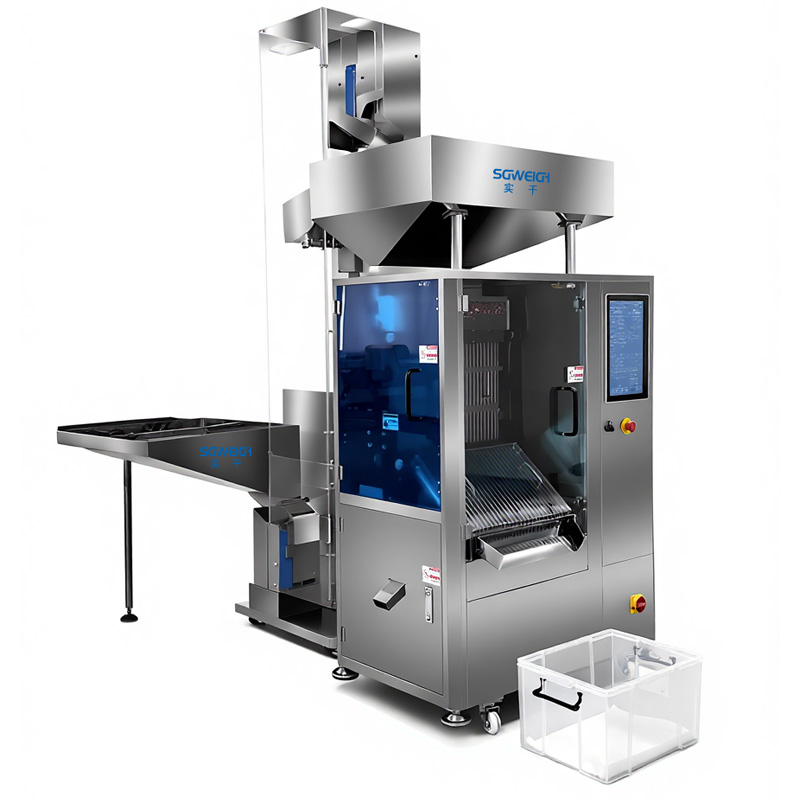

High-Speed Capsule Tablet Weighing Machine
High Speed Inline Package Checkweigher System
Automatic Rubber Checkweigher Precision Checkweigher
Industrial Multi-Lane Packaging Machine for Seeds

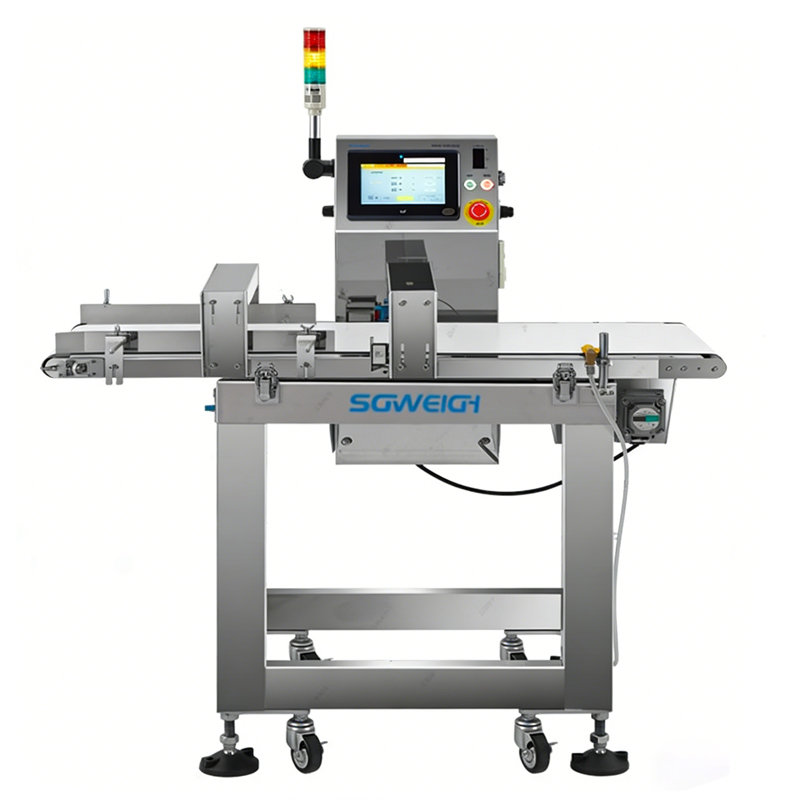

Digital Metal Detector for Bottled & Boxed Food
