SG-M400 Digital All-Metal Detector Food Metal Detection Machine Solution
Food all-metal detector machine solutions are intelligent metal detection equipment developed using digital intelligent technology, which realizes the full digitization and intelligence of metal detection technology, has excellent performance, simple operation, and improves the production efficiency of enterprises. Digital food all-metal detectors can be installed in the middle of the production conveyor line and dock with the front and rear production conveyor lines, or installed at the end of the production line and dock with the production conveyor line, which can realize fully automated online metal detection and automatic rejection of defective products. If you are interested in our products and services,please keep free to contact us.

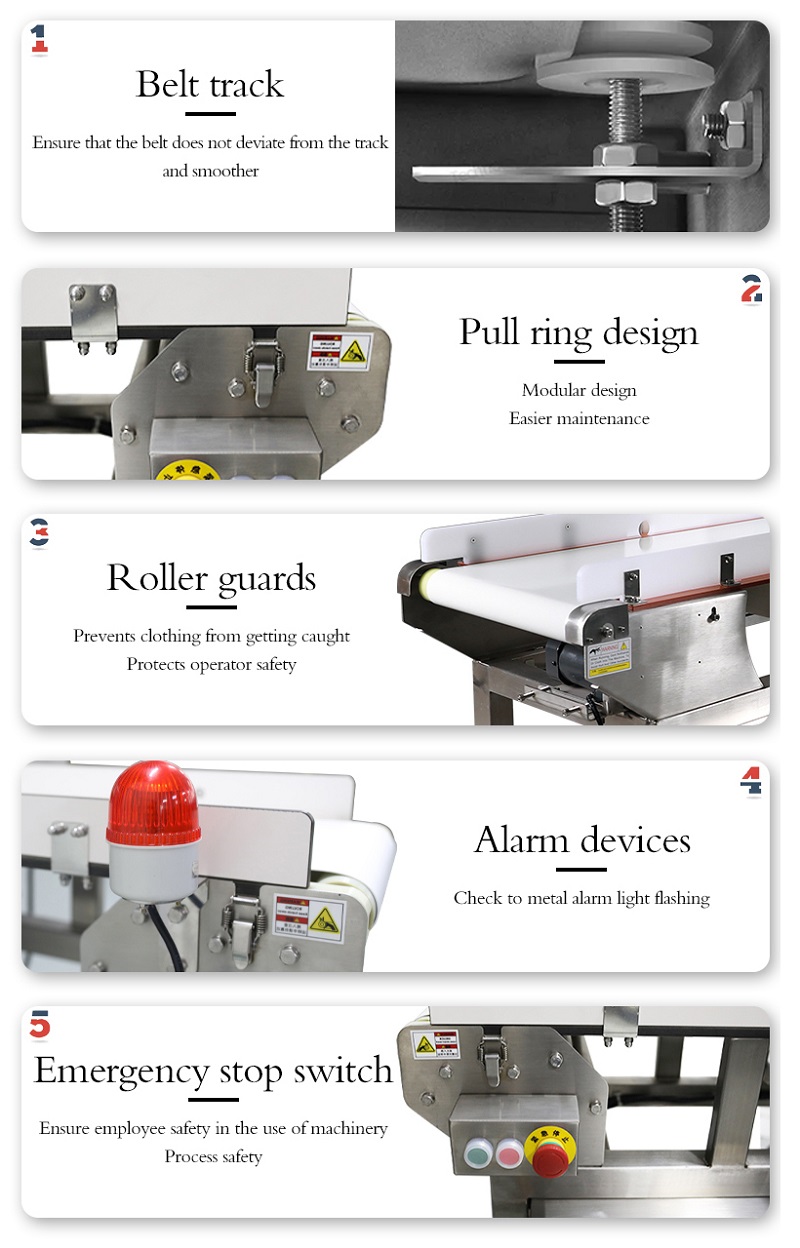

Food all-metal detector machine photos
Type: SG-M400 Digital All-metal Detector Machine (Accept custom)
Detection Sensitivity(Empty statue):H 100mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ1.5mm; H 120mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 150mm: Fe≥ φ1.0mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 200mm: Fe≥ φ1.28mm, Non-Fe ≥φ2.0mm , SUS≥φ2.5mm
Effective hole width detection: 150-1000mm (Accept custom)
Effective hole detection level: 80-500mm(Accept custom)
Conveyor belt,max speed: 25m/min
Material for conveyor belt: Food grade PU belt
Protection grade: IP65
Display and operation mode: LED flat key input
Deadweight of machine: About 120kg
Powder supply: AC220V 50Hz
Powder: 200w
Alarm way: Alarm and belt stop, or automatically reject
Overall dimensions: About L1500xW850xH950 mm(Design drawing prevail)
1. Function: Set various required functions and modes, and set self-check function.
2. Sensitivity: Divided into gears, adjustable to increase or decrease (1-63 gears adjustable).
3. The sensitivity of the electric frequency display can be adjust to reflect the metal index.
5. When a trace amount of metal is detecte, the sound, light, and instrument alarm at the same time, and the unqualified product automatically stops.
6. There is a self-check function, which can check whether the instrument is normal to avoid unnecessary maintenance.
7. The whole machine is made of industrial stainless steel, which is waterproof and rust-proof, hygienic and easy to clean.
8. Environmentally friendly conveyor belt. Food-grade conveyor belt, suitable for temperature range of -20C to 65C, convenient for working in cold storage area.
9. Combined micro-subwoofer environmentally friendly motor, continuous use will not cause failure.
10. It has leakage insurance function and high insurance coefficient.
11. If it contains aluminum foil or film packaging, it is suitable for inspection before packaging.
SG-M400 Digital All-Metal Detector Food Metal Detection Machine Solution
Food all-metal detector machine solutions are suitable for many industries and fields such as food, pharmaceuticals, chemicals, textiles, clothing, rubber and plastics, toys, papermaking, sanitary products, electronics, and renewable resources. They are use to detect various metal impurities such as metal chips, broken needles, iron wire, lead, copper, aluminum, tin, stainless steel, etc. that are mix or lost in raw materials or products.
The models on display are customize models and may not meet your requirements. The above parameters are for reference only. SGWEIGH has more than 14 years of experience in metal detector manufacturing and can provide multiple sets of digital metal detector solutions free of charge according to your actual needs!
SG-M400 Digital All-Metal Detector Food Metal Detection Machine Solution
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replace free of charge; outside the warranty period, accessories will be provide at cost price.
