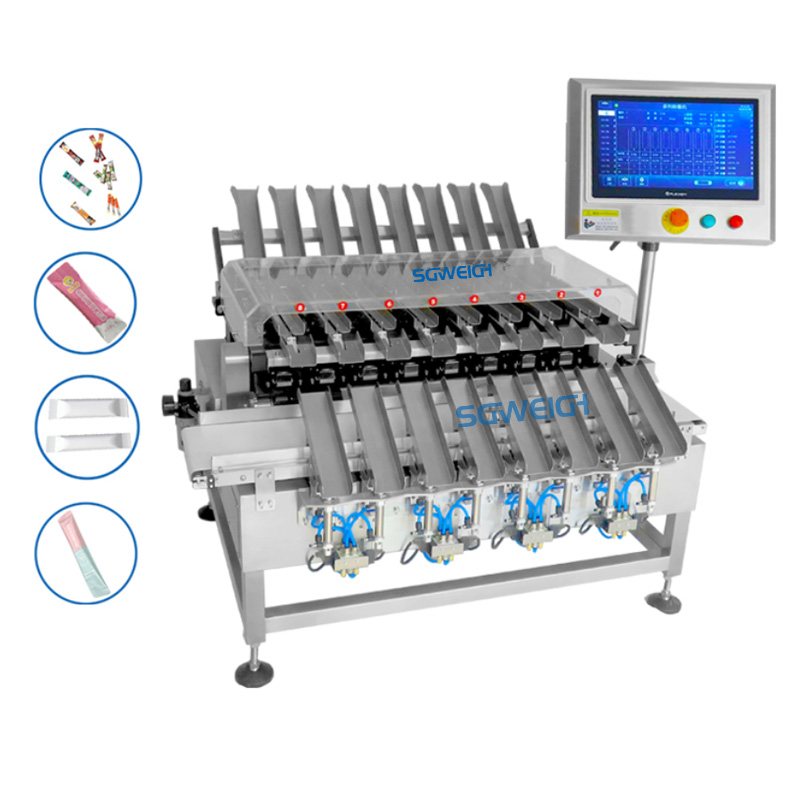

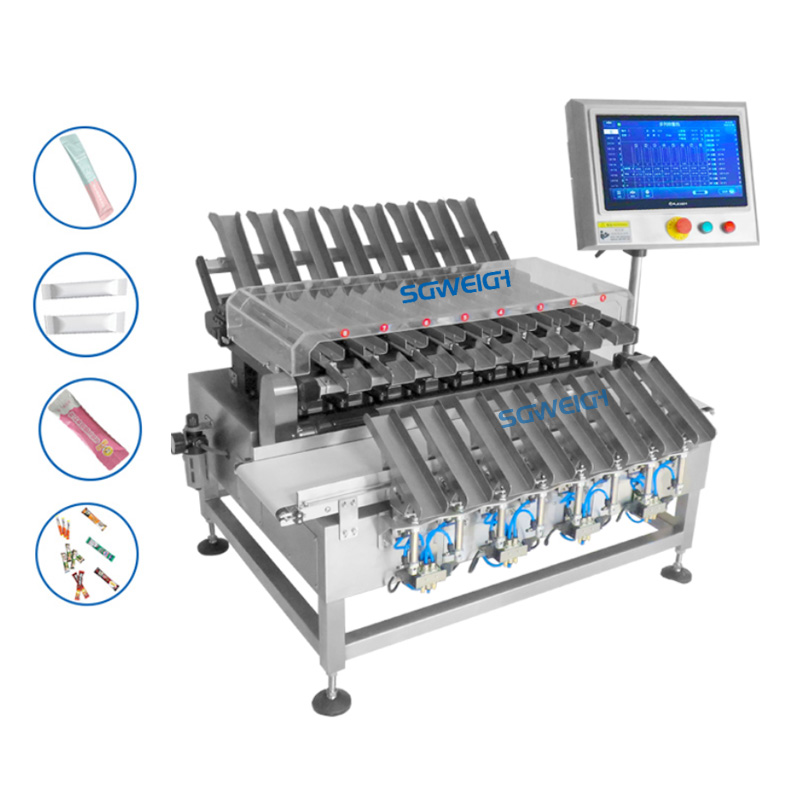

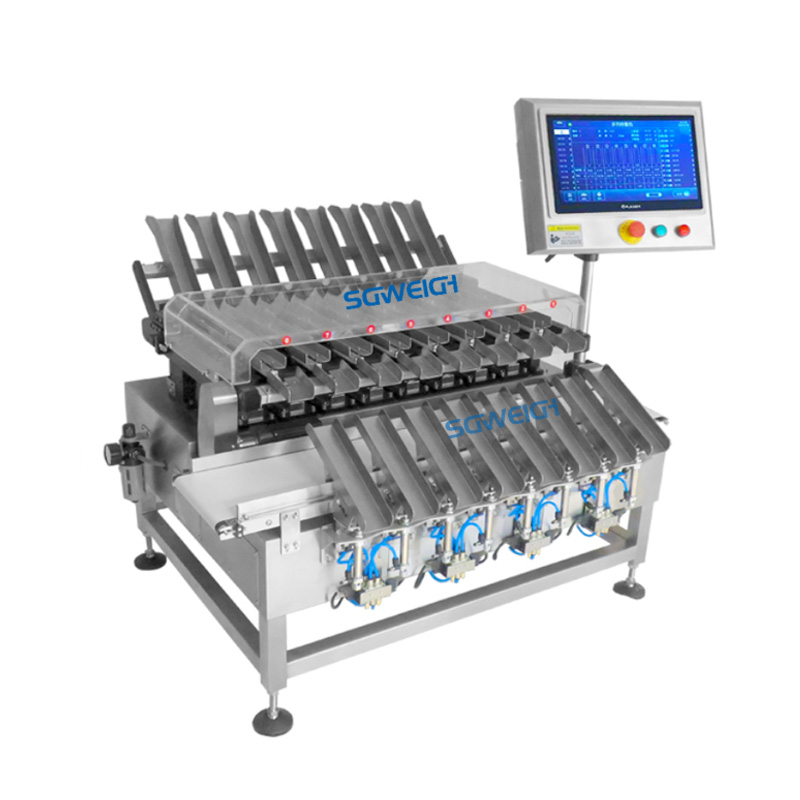

Precision Multi-Lane Checkweigher Solutions for Long Packaging Production
Multi-lane checkweigher for long packaging production can simultaneously detect multiple channels, and advanced weighing sensor technology ensures consistent weight control for long packages, pouches, and strip packages. Precision multi-lane checkweigher solution features customizable channels that can be adjusted according to packaging specifications and production line configurations, and its modular structure allows for easy integration into existing long packaging production lines, supporting quick changeovers and flexible channel configurations. You are welcome to contact us at any time for quotation.
Model: SG-Multi-column Machine
Weighing Range: 1-30g
Minimum Graduation: 0.01g
Sorting Speed: Maximum 50 pieces/minute (single channel)
Conveyor Speed: 20-100m/min
Operation Method: Touchscreen Operation
Conveyor Direction: Can be arranged according to actual site conditions
Rejection Method: Lifting rejection
Belt Height from Ground: 450±50mm (customizable according to customer requirements)
Machine Structure: Stainless Steel (SUS304)
Power Supply: 220V 50-60HZ
Power: Approx. 1000W
Wind Protector: Thick Acrylic (to prevent airflow interference)
Operating Environment: Temperature: 0℃～40℃, Humidity: 30%～95%
Remarks: The detection speed and accuracy will vary depending on the properties of the products being tested and the operating environment. Actual testing shall prevail.
Precision Multi-Lane Checkweigher Solutions for Long Packaging Production
1. Multi-channel data can be counted independently or comprehensively;
2. Checkweighing parameters can also be set independently or uniformly;
3. A control module and display screen;
4. Multi-lane checkweigher for long packaging production has the accuracy and speed of multiple single-row checkweighers;
5. Remote real-time monitoring is possible;
6. Space saving and low cost.
The precision multi-lane checkweigher solution can simultaneously measure the weight of multiple rows, greatly improving weighing speed and preventing the weighing of empty, underweight, or overweight bags. It is widely used in the food, pharmaceutical, beverage, health, and chemical industries.
Precision Multi-Lane Checkweigher Solutions for Long Packaging Production
Packaging:
1: Lubricate the drive unit
2: Divide the machine into modules
3: Wrap the modules with plastic film
4: Pack the modules into cartons
5: Make the shipping mark
If you have any special requirements, we will pack according to your needs.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can customized , according to your product’s features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replace free of charge; outside the warranty period, accessories will be provide at cost price.
Related Products
2-Line Sachet Packing Machine for Powder
Battery Automatic Checkweigher with Rejector

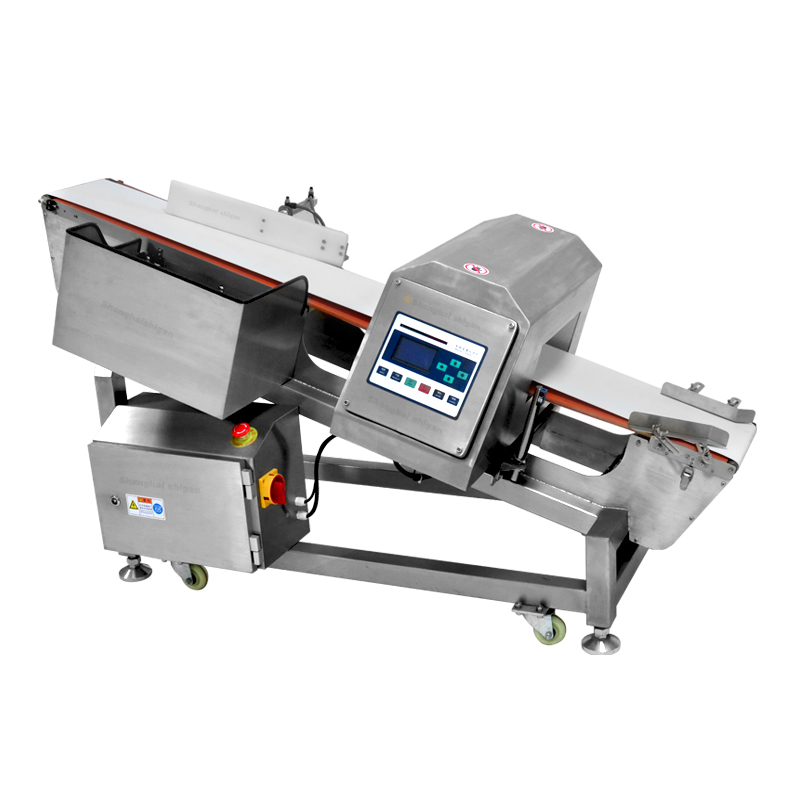

Food Incline Conveyor Metal Detector
