Pharmaceutical Tablet Pill Checkweigher Auto High Speed Weight Checking Solution
This pharmaceutical tablet pill checkweigher is designed to meet high-volume production demands, supporting continuous, high-throughput testing without sacrificing accuracy. Its intelligent control software enables rapid data processing and clear weight trend analysis, ensuring stable operation even under high-speed production conditions. Designed for uncompromising accuracy, this high speed tablet checkweigher provides stable, high-speed weight verification of tablets on pharmaceutical production lines, offering real-time feedback and automatic rejection of defective tablets. You are welcome to contact us at any time for quotation.

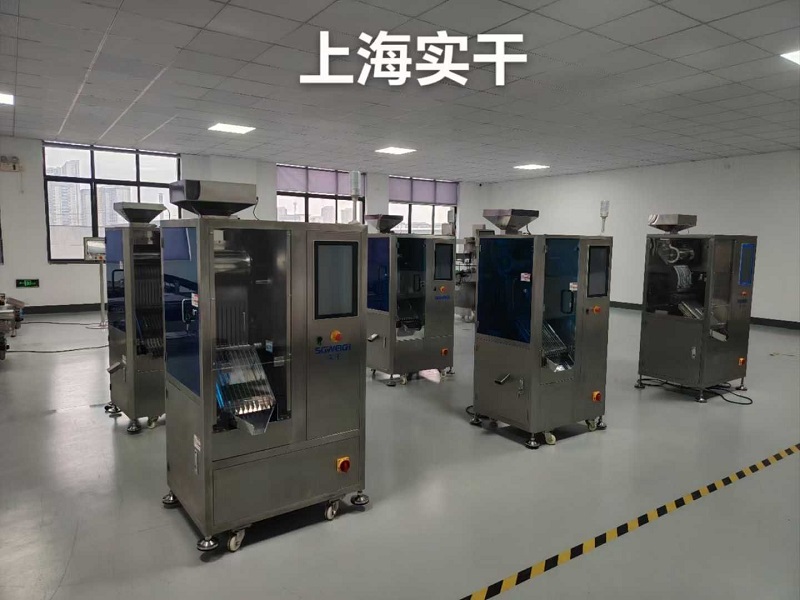

Pharmaceutical tablet pill checkweigher pictures
Type SG-JN20
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 15W pcs/HR
Number of columns: 20
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:500kg
Shell Material:SUS304 Stainless Steel
Pharmaceutical Tablet Pill Checkweigher Auto High Speed Weight Checking Solution
1. Loading and Arranging: The loader delivers tablets pills to the feed inlet, and a vibratory feeder arranges the disordered tablets and pills into a neat row, then feeds them one by one into the inspection track.
2. Dynamic Weighing: The tablets pills pass over high-precision weighing sensors on a high-speed conveyor belt. The sensors collect the weight signal of the tablets pills in real time.
3. Signal Processing: The weight signal is transmitted to the core processing unit, which compares the real-time weight with preset upper and lower weight limits.
4. Judgment and Sorting: Qualified tablets pills: tablets pills with a weight within the acceptable range continue along the track and enter the next process.
Unqualified tablets pills: The pharmaceutical tablet pill checkweigher records tablets pills that are overweight or underweight.
5. Automatic Rejection: When an unqualified product reaches the rejection device, the processing unit issues a command to accurately reject it and place it in the waste bin.
Most of our pharmaceutical tablet pill checkweighers are custom-made to meet specific project requirements.
If possible, please provide us with more details about your project, such as materials, weight range, speed,size, etc.
It’s best to contact us in advance before ordering.
Whether handling coated tablets, capsules, or pills of varying sizes, the pharmaceutical tablet pill checkweigher ensures reliable performance that keeps production lines moving at peak productivity.
Pharmaceutical Tablet Pill Checkweigher Auto High Speed Weight Checking Solution
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
1. Consultation and Evaluation: Understanding customer requirements, production processes, and quality control objectives to determine the most suitable machine solution for their specific needs.
2. Product Demonstration: Visually understand equipment operation and directly evaluate its performance.
3. Installation and Commissioning: After purchase, the machine is installed and commissioned by trained technicians to ensure proper operation and seamless integration into the customer’s production line.
4. Technical Support: Providing ongoing technical support to resolve any questions, problems, or maintenance needs arising during machine operation.
5. Warranty Coverage: 1-year warranty, lifetime maintenance.
We aim to provide customers with the right solutions, support, and peace of mind throughout the entire equipment lifecycle, ensuring the machine meets customer needs and delivers long-term value.
