Pharmaceutical Gravity-Fed Metal Detector for Capsules Tablets with Reject System
Utilizing advanced digital detection technology, this gravity-fed metal detector for capsules tablets accurately identifies and rejects ferrous, non-ferrous, and stainless steel contaminants before products proceed to packaging or subsequent processing stages. Capsules tablets pharmaceutical metal detector can be installed directly beneath tablet presses, capsule polishers, dedusters, or conveyor systems to inspect products as they pass through a gravity chute; this ensures high-speed, continuous inspection without damaging fragile pharmaceutical products. You are welcome to contact us at any time for quotation.

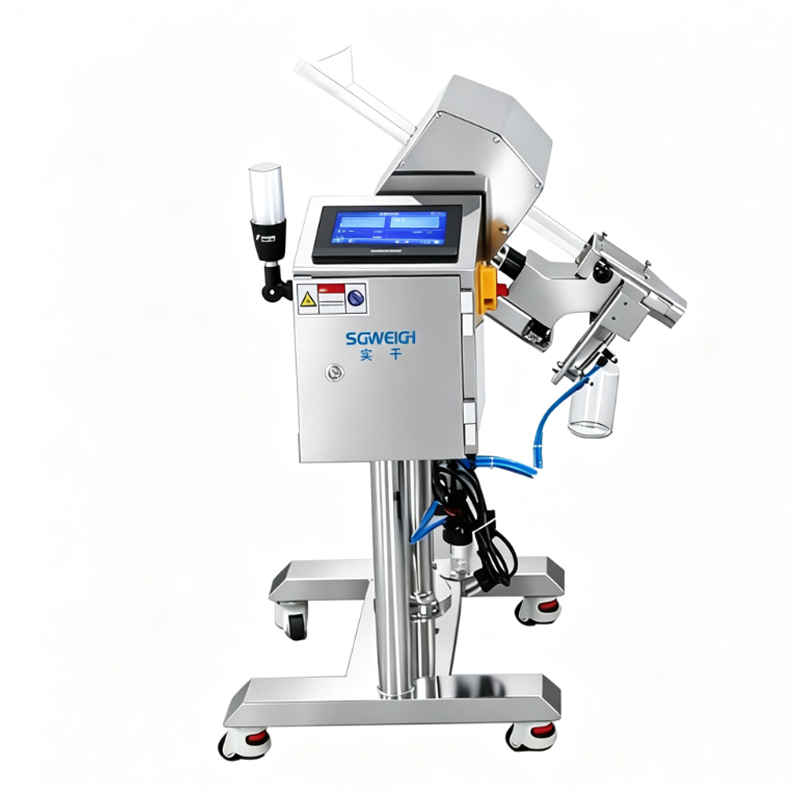

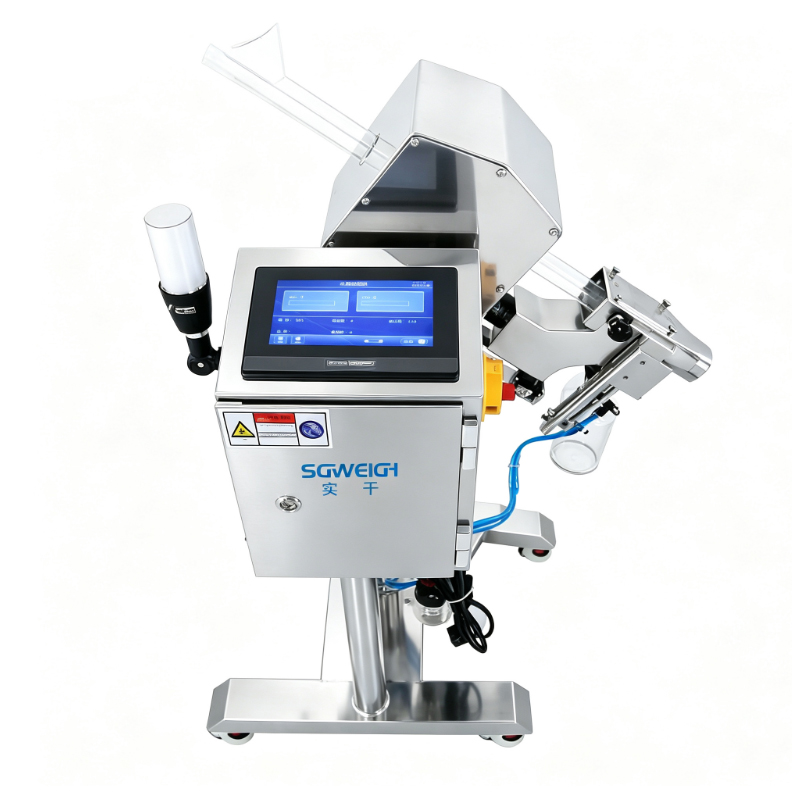

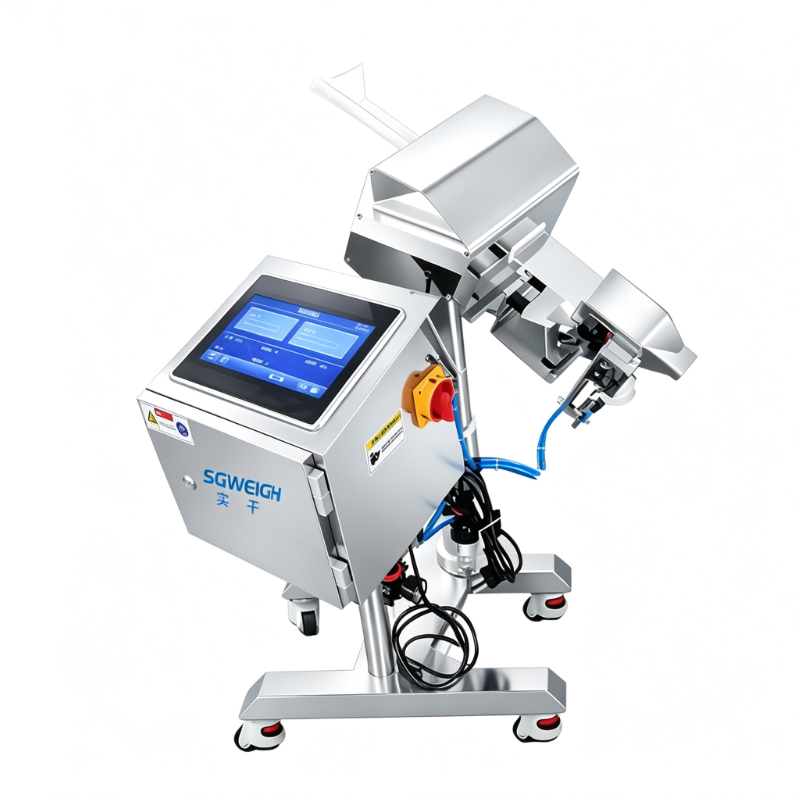

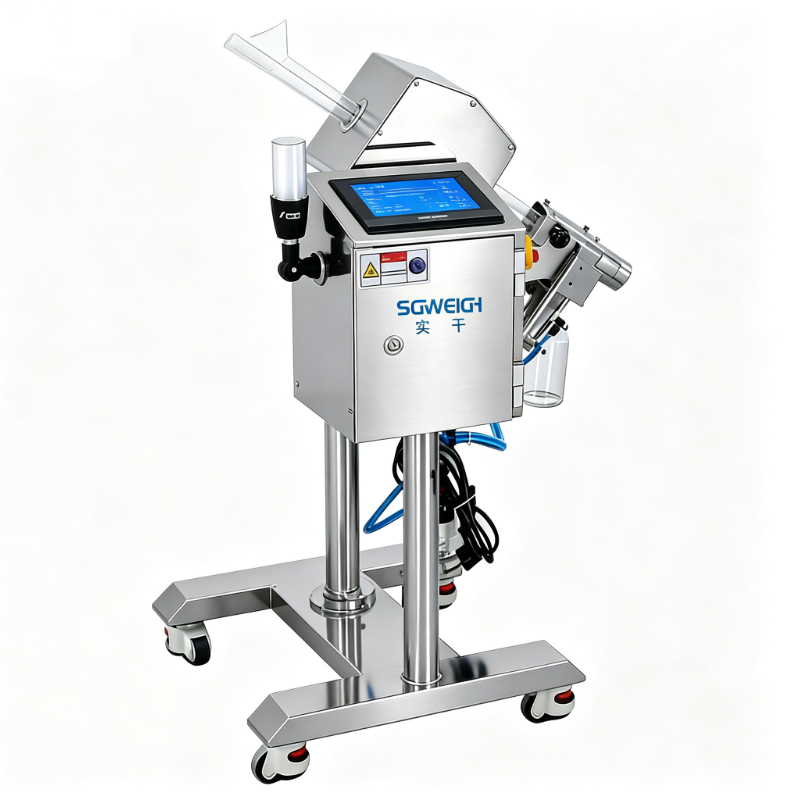

Gravity-fed metal detector for capsules tablets photos
1. High-sensitivity detection of ferrous, non-ferrous, and stainless steel contaminants
2. Gravity-fed inspection for capsules, tablets, pills, softgels, and granules
3. Automatic reject mechanism for immediate contaminant removal
4. Compact design for easy integration beneath tablet presses and capsule polishers
5. High-speed inspection without reducing production throughput
6. User-friendly touchscreen interface with simple parameter adjustment
7. Stable digital processing for accurate and repeatable detection
8. Stainless steel construction for hygienic pharmaceutical production
9. Easy cleaning and low-maintenance operation
10. Supports GMP, HACCP, FDA, and pharmaceutical validation requirements
Model: SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
Pharmaceutical Gravity-Fed Metal Detector for Capsules Tablets with Reject System
The displayed gravity-fed metal detector for capsules tablets may not fully meet your requirements. SGWEIGH offers flexible customization based on customer needs and specific application scenarios—including machine dimensions, conveyor configurations, rejection mechanisms, weighing/metal detection capabilities, software functions, user interfaces, and integration features—along with optional add-ons such as signal lights, statistical software, and printers.
This gravity-feed metal detector for capsules and tablets is specifically designed to inspect a wide range of free-flowing pharmaceutical and nutraceutical products. Its flexible configuration accommodates varying product sizes and production capacities, making it suitable for both new production lines and existing manufacturing facilities. It is widely used for hard gelatin capsules, softgels, pharmaceutical tablets, effervescent tablets, herbal tablets, vitamin tablets, nutritional supplements, health products, traditional medicinal pills, pharmaceutical granules, and pellets.
Pharmaceutical Gravity-Fed Metal Detector for Capsules Tablets with Reject System
Machine Packaging:
Standard export-grade fumigation-free wooden crates; compliant with customs clearance requirements.
Delivery Lead Time:
10–15 days after receipt of payment.
Price Terms:
FOB, CIF/CFR (sea/air), DDU/DDP (sea or air).
Negotiable Payment Methods: T/T, L/C, D/P, D/A, etc.
Pre-sales Service
1. Training for customer engineers on machine operation.
2. Testing using customer product samples on our machines.
3. Sending machine test videos to the customer prior to final payment.
After-sales Service
1. Instruction manuals provided.
2. Videos for machine adjustment and setup.
3. Remote support via phone or face-to-face online communication.
4. One-year warranty and lifetime maintenance; 24/7 online technical support.
