Inclined Conveyor Metal Detector for Food Processing Automatic Belt Metal Detector
This inclined conveyor metal detector for food processing combines an inclined conveyor structure with high-sensitivity metal detection technology. It identifies and rejects common metal contaminants—including ferrous metals, non-ferrous metals, and stainless steel—before products proceed to the next stage of production. The inclined conveyor design of automatic belt metal detector is particularly well-suited for applications requiring vertical product transfer or production layouts that favor an inclined configuration. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

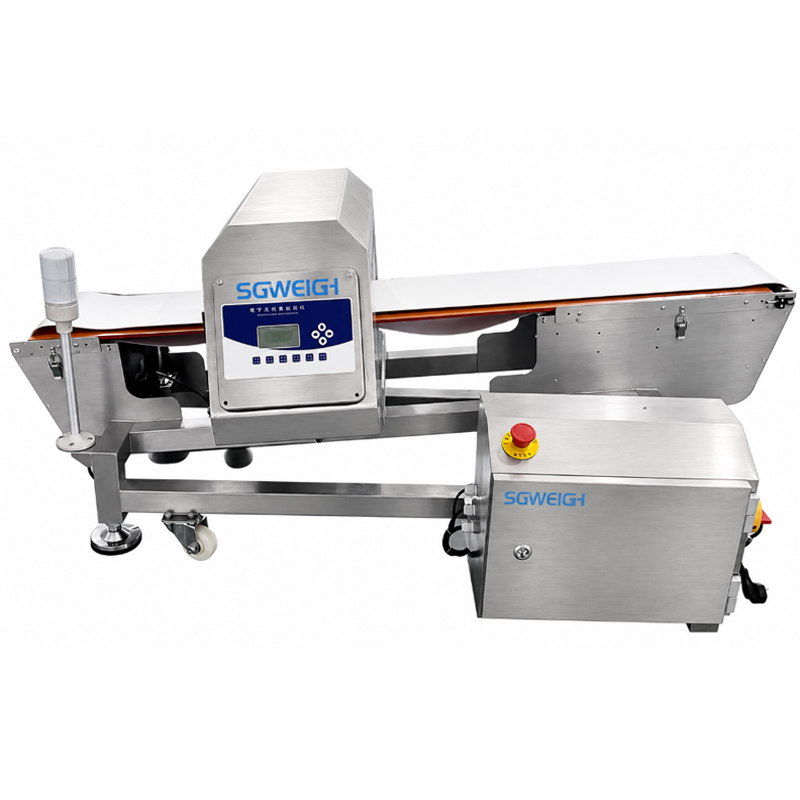

Inclined conveyor metal detector for food processing photos
Detection Method: Magnetic field induction, digital circuit processing
Sensitivity Adjustment: Adjustable (Levels 1–10)
Detection Width: 600mm or customized
Detection Height: Customized
Alarm System: Audible and visual alarms; automatic conveyor reversal; 8-point detection zone display
Power Supply: AC 220V, 50–60Hz
Power Consumption: 60/90W
Machine Dimensions: Approx. 1700mm (L) x 1100mm (W) x Height (TBD)
Net Weight: Approx. 250kg
1. Automated inspection: Checks products as they pass through the detection zone.
2. Flexible conveyor configuration: Supports customized conveyor angles, belt sizes, and line layouts.
3. Automatic product rejection: Optional reject devices can separate detected contaminants from acceptable products.
4. Production-line integration: Can be incorporated into suitable food processing and packaging systems.
5. Operator-friendly controls: Optional touchscreen interfaces and adjustable detection settings simplify routine operation.
Inclined Conveyor Metal Detector for Food Processing Automatic Belt Metal Detector
This inclined conveyor metal detector for food processing was custom-built to a client’s unique specifications and may not meet your exact requirements. We specialize in custom-engineered equipment; parameters such as conveyor incline angle, belt dimensions, aperture size, and belt speed can all be tailored to specific product characteristics and factory requirements. We offer free metal detection solutions and welcome your inquiries at any time.
This inclined conveyor belt metal detector can be configured for a wide range of food products, including packaged goods, snacks, frozen foods, baked goods, and other items requiring conveyor-based inspection.
Inclined Conveyor Metal Detector for Food Processing Automatic Belt Metal Detector
1. Outer packaging: Standard export-grade wooden crate.
2. Inner packaging: The product is carefully wrapped in stretch film, with corners reinforced using hardwood boards and heavy-duty strapping.
3. Inspection team: Professional personnel are responsible for inspecting and sorting your cargo.
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
