High Precision Checkweigher Metal Detector Combination System for Foood
This innovative checkweigher metal detector combination system for foood automatically detects metal contaminants and checks product weight simultaneously, ensuring every product meets precise specifications. Designed for continuous production environments, the high precision checkweigher metal detector combo offers real-time data tracking, automatic reject, and intuitive touchscreen controls. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

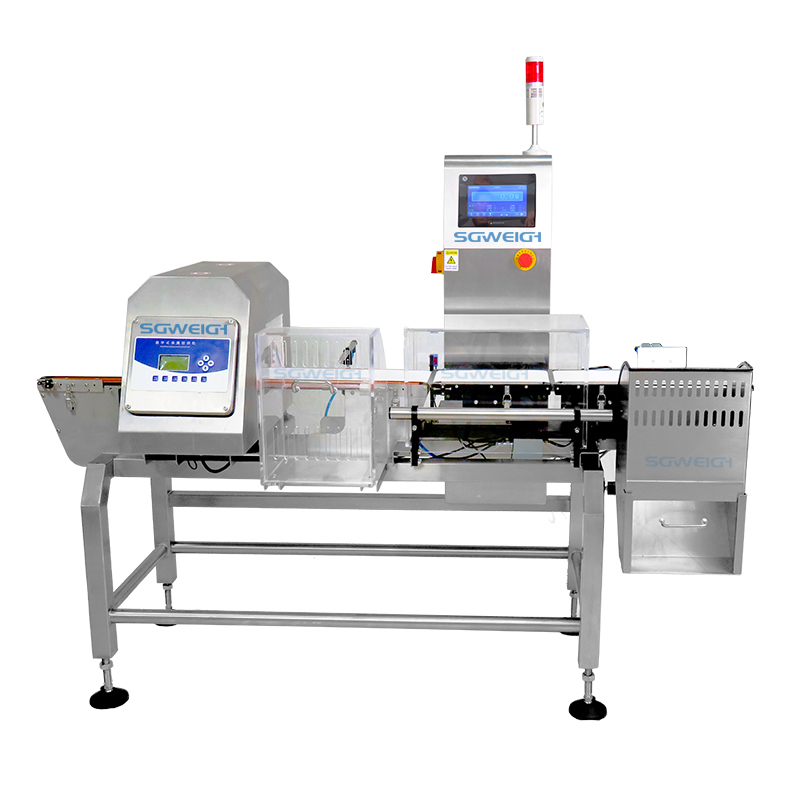

Checkweigher metal detector combination system for foood photos
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
1. Large color LCD touchscreen interface for easy operation and intuitive display.
2. Reinforced 304 stainless steel frame, GMP and HACCP compliant.
3. Simple mechanical structure allows for quick removal, cleaning, and maintenance.
4. Storage for 200 product parameters for user convenience.
5. Automatic zero-point tracking system ensures stable testing.
6. Built-in temperature and noise compensation ensures reliable data.
7. Dynamic weight compensation technology ensures more effective data.
8. Parameter settings are password-protected for administrative operations only.
9. Powerful self-diagnostic function effectively improves operator troubleshooting efficiency.
The checkweigher metal detector combination system for foood on display may not meet your requirements. SGWEIGH can tailor a machine to meet your needs based on your needs and specific scenarios, satisfying your personalized demands in terms of function, performance, appearance, etc.
High precision checkweigher metal detector combination system is suitable for detecting whether the weight of a single product is qualified and whether there is any omission during the packaging process. They are widely used in many industries such as pharmaceuticals, food, beverages, electronics, health products, daily chemicals, light industry, agricultural and sideline products, etc.
High Precision Checkweigher Metal Detector Combination System for Foood
High Precision Checkweigher Metal Detector Combination System for Foood
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
1. Customer Consulting and Technical Support: We provide consulting services on product usage, repair, and maintenance, answering any questions customers may have during operation and use.
2. Technical Training: We provide training on product operation, maintenance, and repair tailored to customer needs, ensuring they can use and care for their products correctly.
3. Accessories Supply: We provide genuine accessories, ensuring their quality and performance to meet customer needs.
4. One-year warranty, lifetime repairs
5. After-sales Service Follow-up: We provide follow-up and feedback on the after-sales service process, promptly understanding customer needs and feedback and continuously improving service quality.
