High-Precision Bottle Rotary Checkweigher High-Speed Pharmaceutical Checkweigher
Utilizing a rotary transport system, this high-precision bottle rotary checkweigher efficiently positions and conveys individual bottles through the weighing process, making it an ideal solution for high-speed bottling inspection applications that require stable product handling and precise weight control. Designed for continuous operation, the automatic pharmaceutical bottle checkweigher combines dynamic weighing technology with controlled rotary product transport. Each bottle undergoes an individual weight check as it passes through the inspection station, with non-conforming products automatically rejected. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

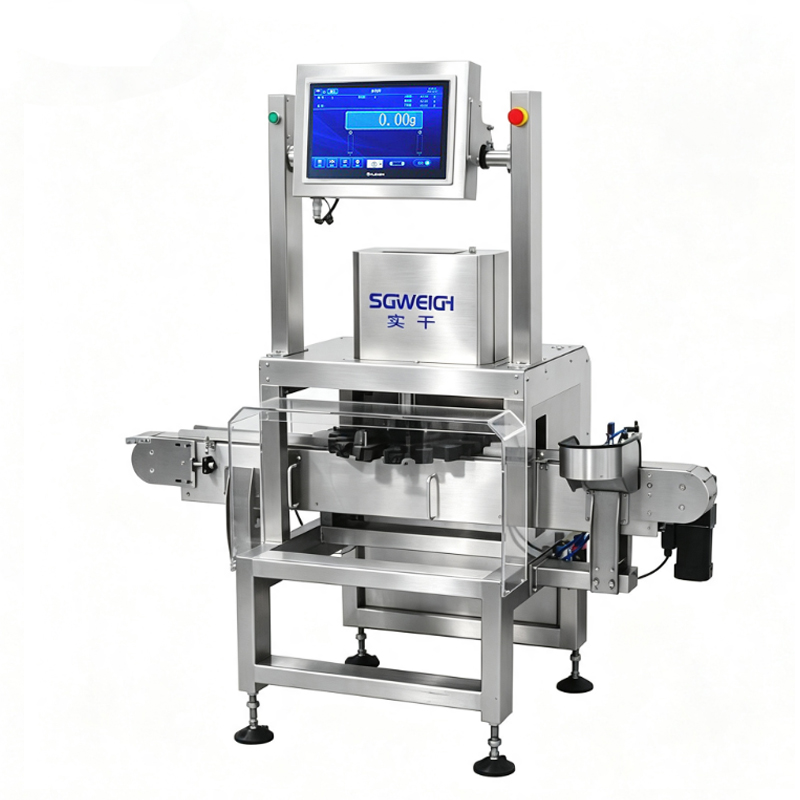

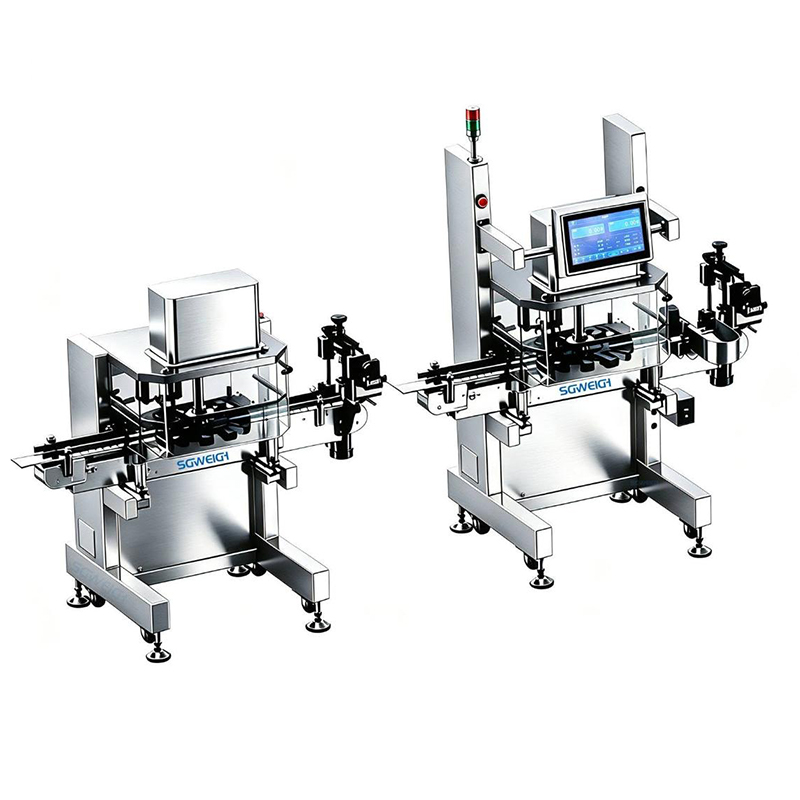

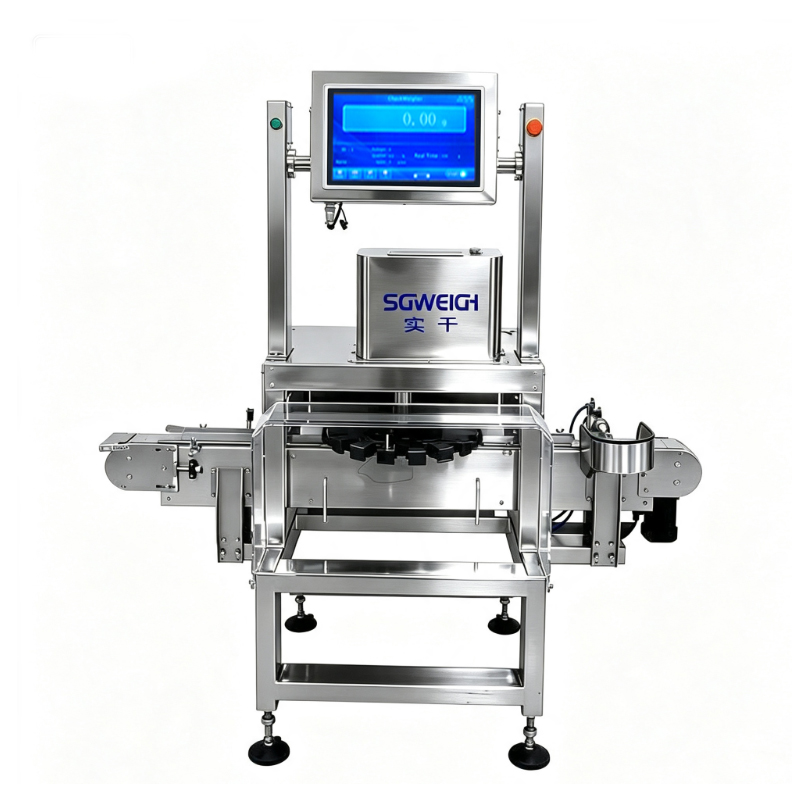

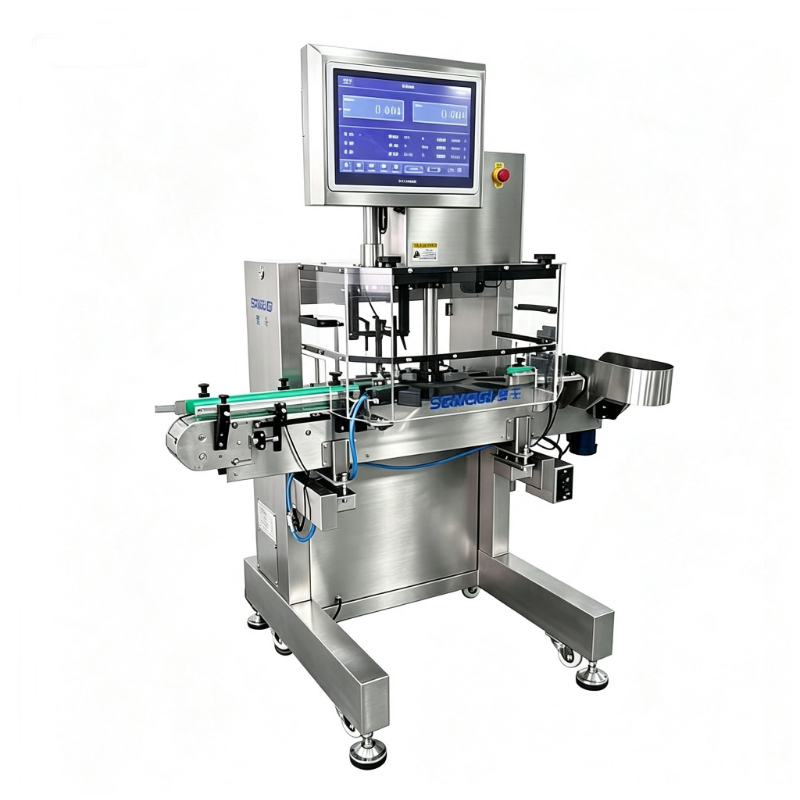

High-precision bottle rotary checkweigher photos
High-Precision Bottle Rotary Checkweigher High-Speed Pharmaceutical Checkweigher
Model SG-Z1
Weighing Range 5–300g
Minimum Graduation 0.01g
Sorting Speed Max. 50 items/minute (single lane)
Conveyor Speed 20–100 m/min
Operation Method Touchscreen interface
Conveying Direction Left to right (facing the touchscreen)
Rejection Method Air blast / Pusher
Conveyor Height 750 ± 50 mm (customizable upon request)
Machine Structure Stainless steel (SUS304)
Power Supply 220V, 50–60Hz
Power Consumption Approx. 300W
Wind Shield Thick acrylic (to prevent airflow interference)
Operating Environment Temperature: 0°C–40°C; Humidity: 30%–95%
Note Detection speed and accuracy vary depending on product characteristics and the operating environment; actual test results prevail.
1. High-speed rotary handling for bottle applications
2. Accurate dynamic weight inspection
3. Automatic detection of overweight and underweight bottles
4. Automatic rejection of non-conforming products
5. Stable bottle positioning during weighing
6. Suitable for continuous automated production
7. Intuitive touchscreen operation
8. Adjustable weight limits and product parameters
9. Reduced manual inspection requirements
10. Flexible integration with bottle filling and packaging lines
This high-precision bottle rotary checkweigher can be flexibly configured according to bottle dimensions, product weight, conveying speed, and production requirements. Please provide us with details regarding the items to be weighed (such as dimensions and material) and the expected throughput so that we can recommend the most suitable model for your needs.
This high-precision bottle rotary checkweigher is particularly suitable for bottled foods, beverages, pharmaceuticals, cosmetics, nutritional supplements, and other liquid or solid products.
High-Precision Bottle Rotary Checkweigher High-Speed Pharmaceutical Checkweigher
1. Our machines undergo comprehensive testing and commissioning prior to shipment to ensure stable and reliable performance.
2. The equipment is packed in reinforced wooden crates featuring internal shock-absorbing and moisture-proof protection to effectively prevent damage during transit.
3. We partner with professional international logistics companies to offer various shipping methods, including sea, air, and land transport.
4. We ensure the safe and timely delivery of the equipment to your facility.
1. We offer a 7-day exchange policy, a one-year warranty, and lifetime maintenance. All products undergo rigorous inspection prior to shipment to ensure that the item you receive is free from quality defects.
2. All products supplied to customers are genuine, original-manufacturer items that utilize authentic parts and specifications.
3. During the warranty period, our company covers the repair of parts damaged due to quality issues; for damage occurring outside the warranty period, replacement parts are provided at cost. In cases where equipment damage is caused by human error, repairs or replacement parts provided by our company are charged at cost.
