High Accuracy Capsules Tablets Throat Metal Detector For Pharmaceutical
Capsules tablets throat metal detectors use electromagnetic fields to detect the presence of metals. When metal pollutants pass through the detector’s magnetic field, it will destroy the magnetic field and trigger an alarm. Contaminated pills will automatically pop out of the production line. Throat metal detector for pharmaceutical is suitable for all types of pills and capsules, and the stainless steel structure provides a hygienic and easy to inspect environment. You are welcome to contact us at any time for quotation.

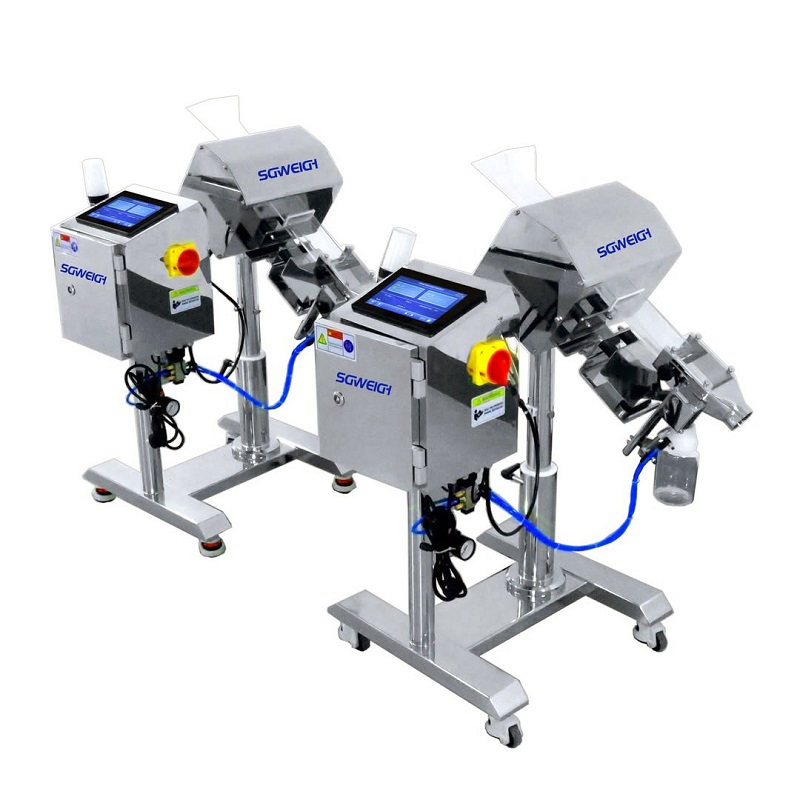

Capsules tablets throat metal detectors photos
High Accuracy Capsules Tablets Throat Metal Detector For Pharmaceutical
Type: SG-YJ60
Inter Height: H 770-930mm; Port size: φ76mm
Outer Height: H 770-860mm; Port size: φ51mm
Effective passing size: W70*H20mm
Output Capacity: 50w pcs/h
Detection sensitivity: φ Fe 0.4mm;φ SUS 0.6mm
Deadweight of machine: 75kg
Rejection Way: Flip Culling
Working powder supply: 220v/110v, 50/60Hz
Dimension: 1115*550*(1280-1440)mm
1. This machine is used to detect metal impurities in tablets and capsules after compression and dust removal processes
2. Can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.), and stainless steel
3. LCD touch screen control, user-friendly interface, supports multiple languages
4. Multiple detection frequencies are available for selection, and different frequencies can be used according to different product effects
5. Equipped with self-learning function, the metal detector will automatically collect product information and recommend suitable detection parameters for each product
6. Advanced DSP technology greatly improves detection performance. Leading genetic algorithms will effectively suppress product signals to achieve reliable sensitivity
7. Can store approximately 100 product data, suitable for testing production lines of multiple products
8. Equipped with an automatic tapping removal system (controlled by pneumatic solenoid valves), non-conforming products will be automatically removed
Most of our products are customized according to specific project requirements.
If possible, please provide us with more detailed information about your project, such as materials, weight range, speed, bag size, etc.
You’d better contact us in advance before placing an order.
High Accuracy Capsules Tablets Throat Metal Detector For Pharmaceutical
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
1. Training services:
We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.
3. Spare parts relpacement:
For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
