Capsule Tablet Weight Inspection Checkweigher for Pharma Lines Solution
This capsule tablet weight inspection checkweigher ensures that every capsule and tablet meets precise weight specifications. Designed for pharmaceutical environments, capsule tablet checkweigher for pharma lines provides high-precision weighing, detecting under- or over-weighted products in real time. Advanced weighing sensor technology and intelligent algorithms deliver stable and repeatable results even at high-speed production levels. You are welcome to contact us at any time for quotation.

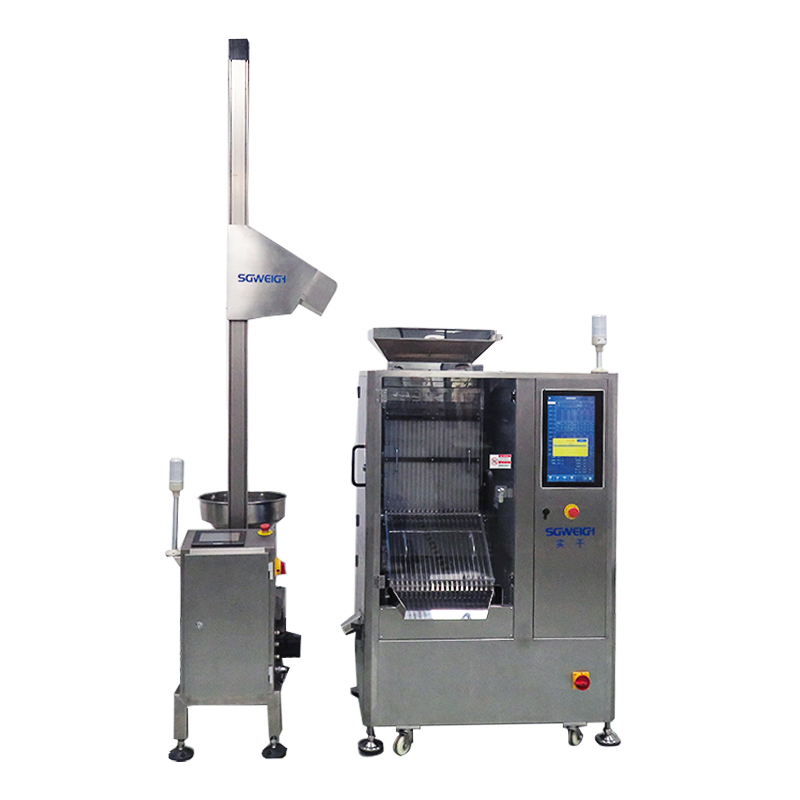

Capsule tablet weight inspection checkweigher photos
Type：SG-JN10/SG-JN20/SG-JN30
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
Capsule Tablet Weight Inspection Checkweigher for Pharma Lines Solution
1. Loading and Arranging: The loader delivers capsules tablets to the feed inlet, and a vibratory feeder arranges the disordered capsules tablets into a neat row, then feeds them one by one into the inspection track.
2. Dynamic Weighing: The capsules tablets pass over high-precision weighing sensors on a high-speed conveyor belt. The sensors collect the weight signal of the capsules tablets in real time.
3. Signal Processing: The weight signal is transmitted to the core processing unit, which compares the real-time weight with preset upper and lower weight limits.
4. Judgment and Sorting:
Qualified Capsules Tablets: Capsules tablets with a weight within the acceptable range continue along the track and enter the next process.
Unqualified Capsules Tablets: The capsule tablet weight inspection checkweigher records capsules tablets that are overweight or underweight.
5. Automatic Rejection: When an unqualified product reaches the rejection device, the processing unit issues a command to accurately reject it and place it in the waste bin.
1. Optimal accuracy depends on product conditions, while maximum speed depends on product size and conveyor speed.
2. The above machine specifications are standard specifications; special requirements such as dimensions can be customized.
This capsule tablet weight inspection checkweigher is suitable for capsules, tablets, and low-dose solid dosage forms.
Capsule Tablet Weight Inspection Checkweigher for Pharma Lines Solution
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
1. Warranty: Our packaging machines come with a 12-month warranty. Most parts are replaced free of charge under warranty (PLC, servo controller, servo motor, touch screen, cylinder).
2. After-sales Service: One-year warranty, lifetime maintenance.
3. Technical Support: We will provide technical consultation, drawings, specifications, customized solutions, and technical problem analysis before customers place an order.
4. Operation Training: We welcome customers’ technicians to visit our factory to learn the operation process, take photos, and record videos.
