Capsule Multi-Lane Weight Inspection Checkweigher Online Weight Control Solution
This capsule multi-lane weight inspection checkweigher provides uncompromising accuracy for pharmaceutical capsule production lines. It simultaneously checks multiple channels, ensuring each capsule meets precise weight specifications even at high speeds. The intelligent channel management and rapid processing capabilities of online capsule inspection checkweigher enable continuous operation; by checking more capsules per minute, it minimizes bottlenecks and accelerates packaging line speed. You are welcome to contact us at any time for quotation.

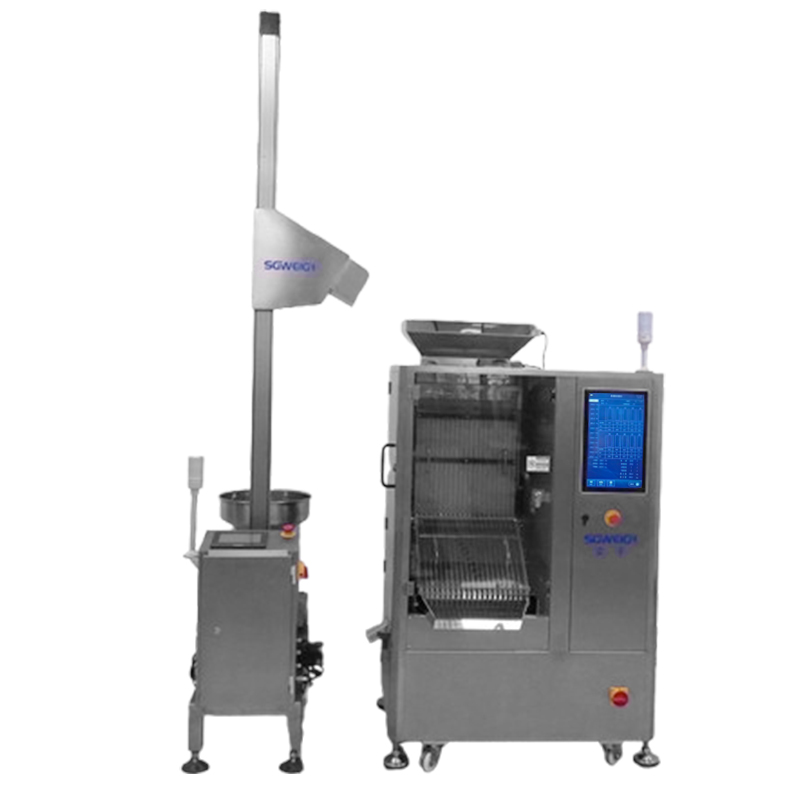

Capsule multi-lane weight inspection checkweigher photos
Type：SG-JN10/SG-JN20/SG-JN30
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
1. Loading and Arranging: The loader delivers capsules to the feed inlet, and a vibratory feeder arranges the disordered capsules into a neat row, then feeds them one by one into the inspection track.
2. Dynamic Weighing: The capsules pass over high-precision weighing sensors on a high-speed conveyor belt. The sensors collect the weight signal of the capsules in real time.
3. Signal Processing: The weight signal is transmitted to the core processing unit, which compares the real-time weight with preset upper and lower weight limits.
4. Judgment and Sorting: Qualified Capsules: Capsules with a weight within the acceptable range continue along the track and enter the next process.
Unqualified Capsules: The capsule multi-lane weight inspection checkweigher records capsules that are overweight or underweight.
5. Automatic Rejection: When an unqualified product reaches the rejection device, the processing unit issues a command to accurately reject it and place it in the waste bin.
Capsule Multi-Lane Weight Inspection Checkweigher Online Weight Control Solution
On pharmaceutical production lines, capsule multi-lane weight inspection checkweigher is used to check the weight of tablets, capsules, etc., to ensure accurate dosage and compliance with Good Manufacturing Practices (GMP).
Capsule multi-lane weight inspection checkweighers are key testing equipment on production lines, used in various fields. If the product specifications do not meet your requirements, please contact us with an inquiry or chat with me to meet your customization needs. We can also introduce our factory and machines to you via live stream. Our team will tailor a solution for you.
Capsule Multi-Lane Weight Inspection Checkweigher Online Weight Control Solution
Machine Packing: Non-fumigation wooden case for export standard and comply with customs clearance requirements.
Lead Time: 10-15 days after payment received.
Price Term: FOB, CIF/CFR (sea/air), DDU/DDP (sea/air).
Negotiable Payment Terms: T/T, LC, D/P, D/A, etc.
1. Equipment Installation and Commissioning: The company provides detailed operation manuals and free operation training to enable customers to master the use of the equipment.
2. Technical Support: The company provides 24/7 technical support. Customers can contact engineers at any time to resolve any problems encountered during use.
3. Spare Parts Supply: The company provides original factory parts, guaranteeing their quality and stability.
4. Quality Assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. One-year warranty, lifetime maintenance.
