All-in-One Bottle Checkweigher and Metal Detector for Barbecue Sauce
All-in-one bottle checkweigher and metal detector combines a high-precision checkweigher with a sensitive metal detection system, enabling two key quality control tasks to be completed on a compact production line: the high-sensitivity metal detection system identifies potential metal contaminants during production, while the dynamic checkweigher verifies that each product meets the required weight tolerances. By integrating checkweigher and metal detector into a single automated system, a more reliable quality control process is established, while reducing the need for separate detection equipment. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

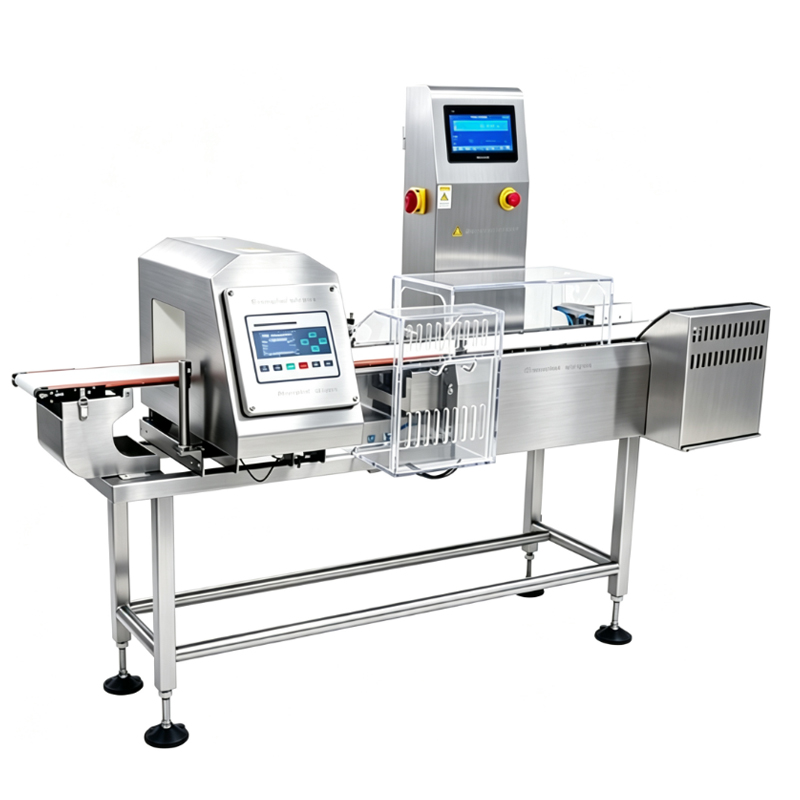

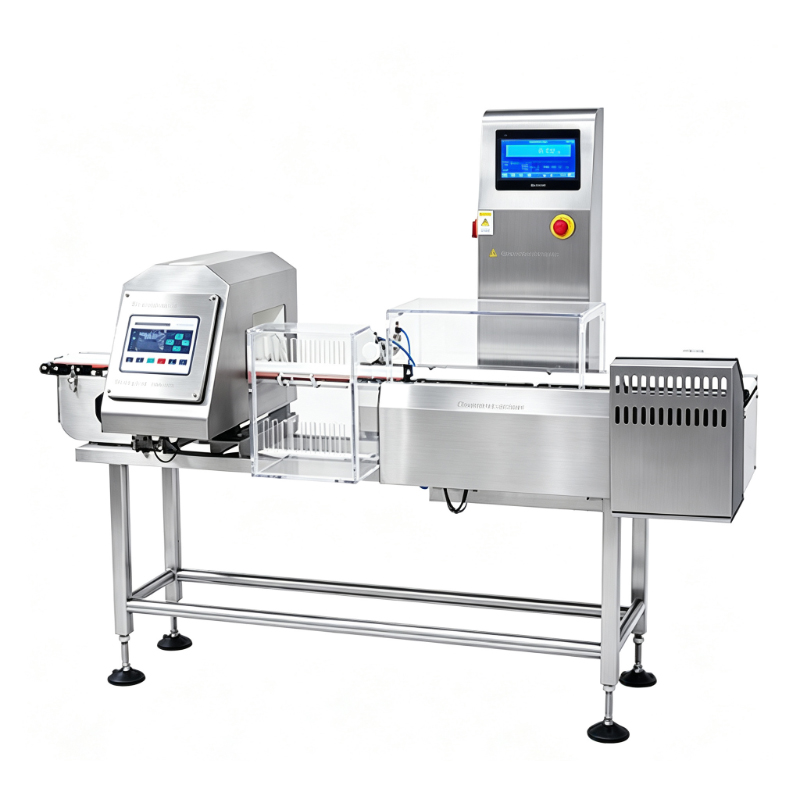

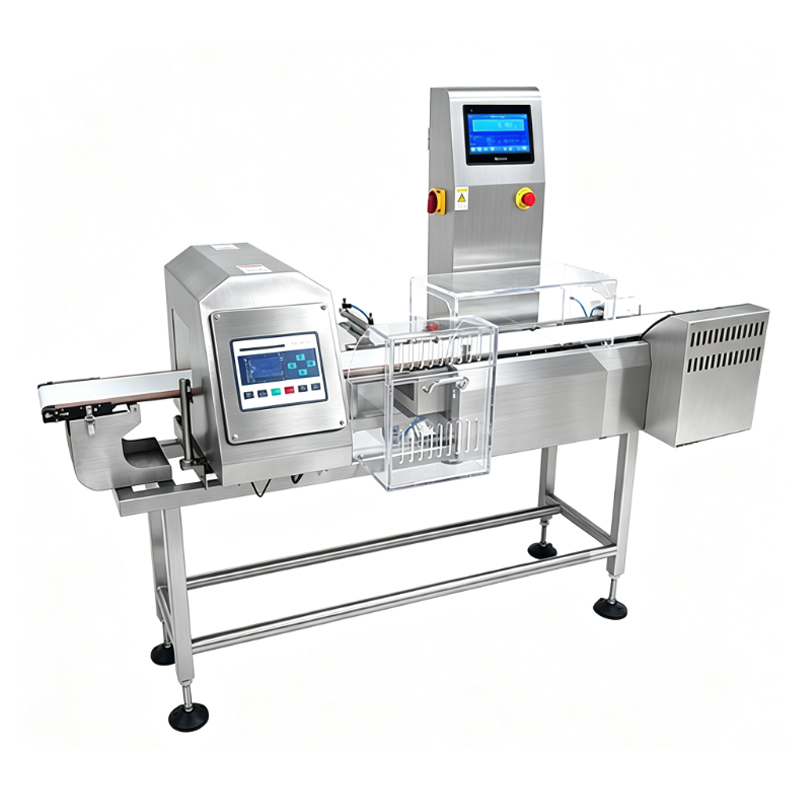

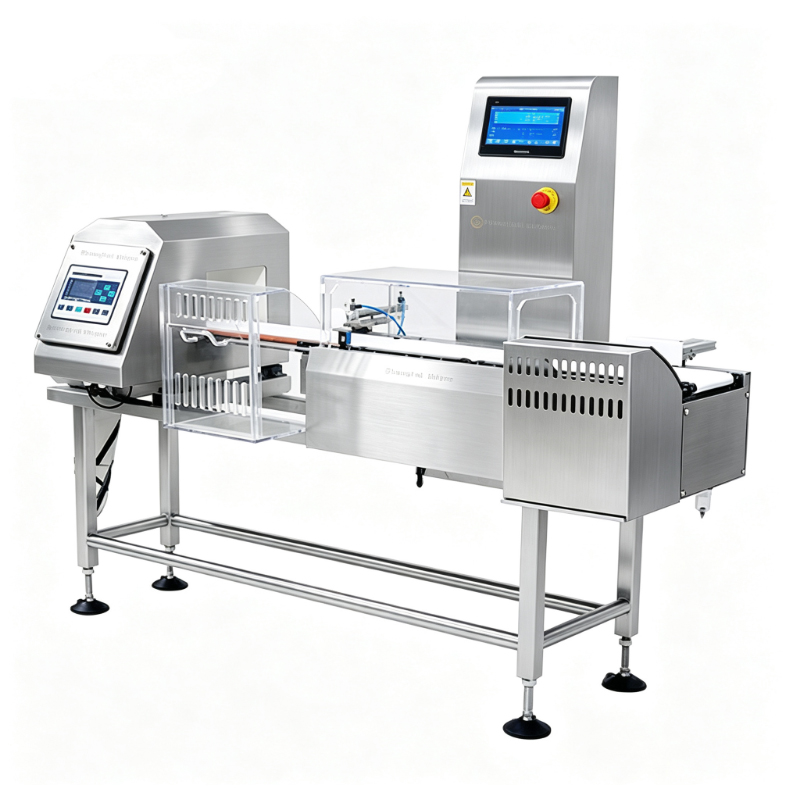

All-in-one bottle checkweigher and metal detector photos
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
Looking for an all-in-one bottle checkweigher and metal detector for your application? Contact our engineering team today. Simply provide your product weight, dimensions, packaging type, and production speed, and we can recommend the most suitable solution and provide a competitive quote based on your production line requirements.
1. Accurate automatic weight checking for bottled barbecue sauce
2. Integrated metal contamination detection
3. Automatic rejection of non-conforming products
4. Continuous inline inspection for high-efficiency production
5. Reduced labor requirements and improved quality consistency
6. Compact all-in-one design that saves valuable production space
All-in-One Bottle Checkweigher and Metal Detector for Barbecue Sauce
This all-in-one bottle checkweigher and metal detector an ideal solution for bottled barbecue sauce, ketchup, chili sauce, salad dressing, seasoning sauces, condiments, and other liquid or semi-liquid food products.
All-in-One Bottle Checkweigher and Metal Detector for Barbecue Sauce
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
1. Equipment Installation and Commissioning: The company provides detailed operation manuals and free operation training to ensure customers can master the use of the equipment.
2. Technical Support: The company provides 24/7 technical support to solve problems encountered by customers during use.
3. Spare Parts Supply: The company provides original factory parts, ensuring the quality and stability of the parts.
4. Quality Assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. Warranty Policy: One-year warranty and lifetime maintenance, eliminating any worries for customers.
