1500g Box Checkweigher for Packaging Lines Automatic Checkweighing Solution
Designed to improve production line performance, this 1500g box checkweigher for packaging lines provides high-speed, high-precision weighing, enabling real-time rejection of non-conforming items, ensuring that every product leaving the factory meets precise standards. Designed for durability, this automatic box checkweigher solution‘s compact design saves floor space while maintaining stability and durability in continuous operation. You are welcome to contact us at any time for quotation.
1500g box checkweigher for packaging lines photos
Type SG-220
Weighing Range 5-1500g
Limited of product L: 300 W:220 H: 3-200mm
Accuracy ±0.2g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 100 pcs/min
Belt Width p220mm
Machine Weight 85kg
Power Supply AC-220V 50HZ
Power 200W
Main Material SU304 stainless steel
1500g Box Checkweigher for Packaging Lines Automatic Checkweighing Solution
1. Strong practicality: 7/10-inch high color, high-resolution human-machine interface, easy and friendly operation, easy to use. Multiple product preset functions, one-click to change product parameters.
2. High stability: self-developed weighing recognition algorithm, automatic dynamic zero tracking and anti-vibration algorithm, weighing data recognition is faster and more stable. With built-in power-off memory function, weighing data will not be lost when the factory suddenly loses power, trips, etc.
3. Convenient docking: counterweight data storage and export function, can store multiple product weighing information, U disk export EXCEL table data; can be docked with EMS, WMS and other systems, product information traceability, remote control equipment start and stop, multiple data verification modes, to ensure that data is not leaked.
4. Rigorous design: modular structure, simple and convenient disassembly and assembly, easy maintenance and easy cleaning.
5. High cost performance: different casing materials, sensors and other standard parts can be customized according to the actual needs of customers. Industry application:
This box checkweigher for packaging lines can also be customized according to customer requirements.
Customized items are as follows:
1. Customized tabletop.
2. Customized height.
3. Customized material.
4. The meter and roller can be wirelessly connected.
5. The meter can have its own USB storage function.
6. The meter can send weight data via Bluetooth.
7. The meter can select the automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm light function.
10. External scanner function.
– Leisure food: various packaging such as potato chips, biscuits, jellies, sweets, tea bags, instant noodles, etc.
– Agricultural products: rice bags, dried fruit net bags, grains, frozen products
– Daily cosmetics: bottled shampoo, cosmetic bags, filling aerosols
– Hardware industry products: printing, toys, PCB boards, metal parts
– Pharmaceutical industry: bottle pills, small particle sachets, pulse bottles, etc.
1500g Box Checkweigher for Packaging Lines Automatic Checkweighing Solution
1. Packaging materials: Usually international standard export packaging boxes are used, which have good wear resistance, shock resistance and waterproof performance. The box material can be selected from hard wooden boxes, plastic boxes or special export cartons.
2. Protective measures: To ensure that the machine is not damaged during transportation, it is necessary to add sufficient filling materials such as foam, shockproof cotton, etc. in the packaging box.
1. Pre-sales consultation
We will help you customize the appropriate automatic box checkweigher solutions according to your requirements and specific circumstances.
2. Installation service
We will dispatch professional technicians to perform on-site installation and commissioning as needed.
3. Maintenance service
Shigan provides long-term maintenance services, providing any repair parts free of charge during the warranty period, and only charges after the warranty period expires.
4. Employee training
Shigan provides free technical training for our customers to fully master the correct product maintenance technology.
Related Products

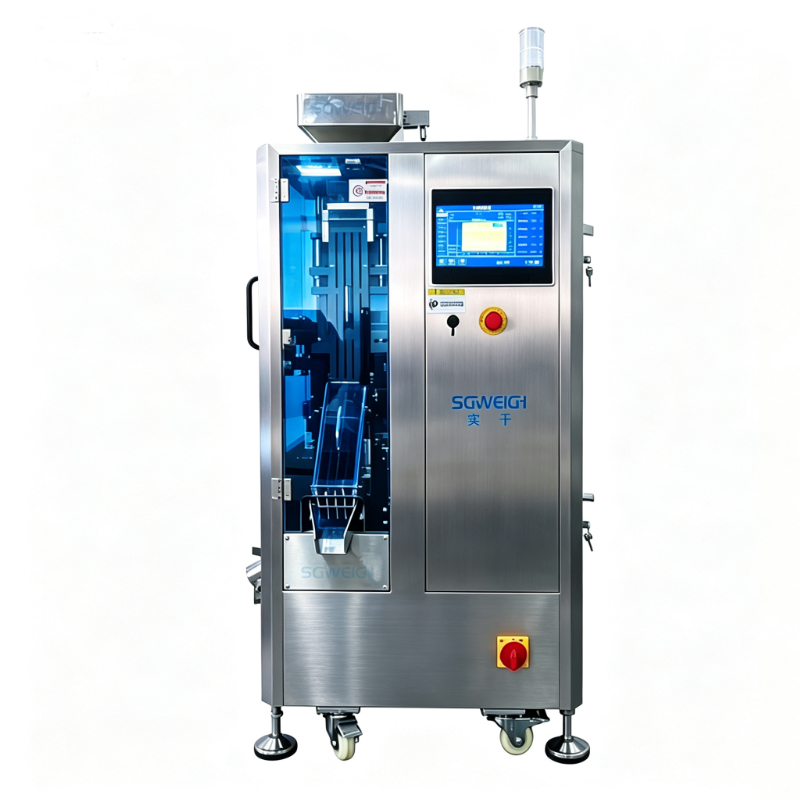

Dual-Side Sorting Capsule And Tablet Checkweigher
Real-Time Bottle Weight Inspection System

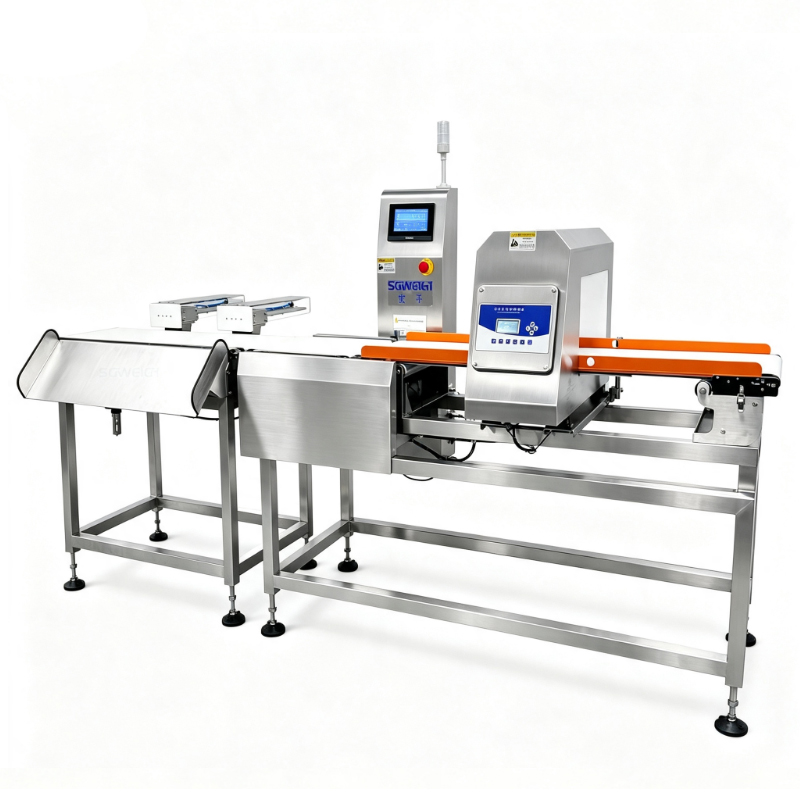

Integrated Checkweigher and Metal Detection Machine
